PD57-1-1160-CANOPEN - PD57-1-1160-CANOPEN

PD57-1-1160-CANOPEN

Active
Analog Devices Inc./Maxim Integrated

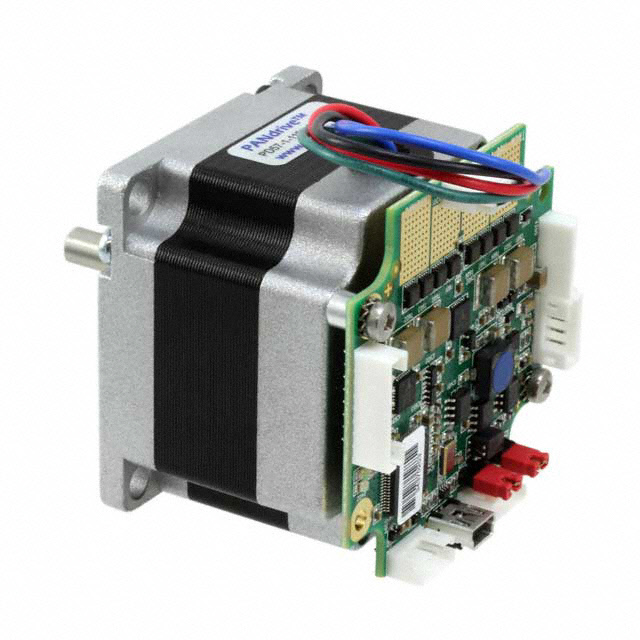

STEPPER MOTOR HYBRID BIPOLAR 48V

Deep-Dive with AI

Search across all available documentation for this part.

PD57-1-1160-CANOPEN - PD57-1-1160-CANOPEN

PD57-1-1160-CANOPEN

Active
Analog Devices Inc./Maxim Integrated

STEPPER MOTOR HYBRID BIPOLAR 48V

Deep-Dive with AI

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationPD57-1-1160-CANOPENPD57-1 Series
Coil Resistance-0.7 Ohms
Coil TypeBipolarBipolar
Current Rating (Amps)2.8 A2.8 A
Diameter - Shaft [diameter]0.25 in0.25 in
Diameter - Shaft [diameter]6.35 mm6.35 mm
FeaturesFlatted Shaft, Integrated ControllerFlatted Shaft, Integrated Controller
Length - Shaft and Bearing [x]24 mm24 mm
Length - Shaft and Bearing [x]0.945 in0.945 in
Mounting Hole Spacing47.14 mm47.14 mm
Mounting Hole Spacing1.856 in1.856 in
NEMA Frame Size2323, 24
Operating Temperature-50 °C
Operating Temperature--20 C
Rotor Inertia-120 gcm˛
Size / Dimension [x]2.362 in2.362 in
Size / Dimension [x]60 mm60 mm
Size / Dimension [y]2.362 in2.362 in
Size / Dimension [y]60 mm60 mm
Step Angle1.8 °1.8 °
Step Angle-1.8¯
Steps per Revolution200200
Torque - Holding (oz-in / mNm)550 mNm550 mNm
Torque - Holding (oz-in / mNm)77.89 oz-in77.89 oz-in
TypeHybridHybrid
Voltage - Rated-2 - 24 VDC
Voltage - Rated [custom]48 VDC48 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCase 1$ 304.23

PD57-1 Series

STEPPER MOTOR HYBRID BIPOLAR 48V

PartCoil TypeFeaturesDiameter - Shaft [diameter]Diameter - Shaft [diameter]NEMA Frame SizeMounting Hole SpacingMounting Hole SpacingSize / Dimension [x]Size / Dimension [y]Size / Dimension [x]Size / Dimension [y]Torque - Holding (oz-in / mNm)Torque - Holding (oz-in / mNm)TypeSteps per RevolutionLength - Shaft and Bearing [x]Length - Shaft and Bearing [x]Current Rating (Amps)Voltage - Rated [custom]Step AngleRotor InertiaVoltage - RatedCoil ResistanceOperating Temperature [Max]Operating Temperature [Min]Step Angle
Analog Devices Inc./Maxim Integrated
PD57-1-1160-TMCL
Bipolar
Flatted Shaft, Integrated Controller
0.25 in
6.35 mm
23
47.14 mm
1.856 in
2.362 in
2.362 in
60 mm
60 mm
550 mNm
77.89 oz-in
Hybrid
200
24 mm
0.945 in
2.8 A
48 VDC
1.8 °
Analog Devices Inc./Maxim Integrated
PD57-1-1378-TMCL
Bipolar
Flatted Shaft, Integrated Controller
23
2.362 in
2.362 in
60 mm
60 mm
550 mNm
77.89 oz-in
Hybrid
200
2.8 A
1.8 °
120 gcm˛
2 VDC
0.7 Ohms
50 °C
-20 C
Analog Devices Inc./Maxim Integrated
PD57-1-1276-TMCL
Bipolar
Flatted Shaft, Integrated Controller
23
2.362 in
2.362 in
60 mm
60 mm
550 mNm
77.89 oz-in
Hybrid
200
2.8 A
1.8 °
120 gcm˛
2 VDC
0.7 Ohms
50 °C
-20 C
Analog Devices Inc./Maxim Integrated
PD57-1-1260-TMCL
Bipolar
Flatted Shaft, Integrated Controller
0.25 in
6.35 mm
24
47.14 mm
1.856 in
2.362 in
2.362 in
60 mm
60 mm
550 mNm
77.89 oz-in
Hybrid
200
24 mm
0.945 in
2.8 A
120 gcm˛
2 VDC
50 °C
-20 C
1.8¯
Analog Devices Inc./Maxim Integrated
PD57-1-1161
Bipolar
Flatted Shaft, Integrated Controller
0.25 in
6.35 mm
23
47.14 mm
1.856 in
2.362 in
2.362 in
60 mm
60 mm
550 mNm
77.89 oz-in
Hybrid
200
24 mm
0.945 in
2.8 A
1.8 °
24 VDC
Analog Devices Inc./Maxim Integrated
PD57-1-1276-CANOPEN
Bipolar
Flatted Shaft, Integrated Controller
23
2.362 in
2.362 in
60 mm
60 mm
550 mNm
77.89 oz-in
Hybrid
200
2.8 A
1.8 °
120 gcm˛
2 VDC
0.7 Ohms
50 °C
-20 C
Analog Devices Inc./Maxim Integrated
PD57-1-1076
Bipolar
Flatted Shaft, Integrated Controller
23
2.362 in
2.362 in
60 mm
60 mm
550 mNm
77.89 oz-in
Hybrid
200
2.8 A
1.8 °
120 gcm˛
2 VDC
0.7 Ohms
50 °C
-20 C
Analog Devices Inc./Maxim Integrated
PD57-1-1260-CANOPEN
Bipolar
Flatted Shaft, Integrated Controller
0.25 in
6.35 mm
24
47.14 mm
1.856 in
2.362 in
2.362 in
60 mm
60 mm
550 mNm
77.89 oz-in
Hybrid
200
24 mm
0.945 in
2.8 A
1.8 °
120 gcm˛
2 VDC
50 °C
-20 C
Analog Devices Inc./Maxim Integrated
PD57-1-1160-CANOPEN
Bipolar
Flatted Shaft, Integrated Controller
0.25 in
6.35 mm
23
47.14 mm
1.856 in
2.362 in
2.362 in
60 mm
60 mm
550 mNm
77.89 oz-in
Hybrid
200
24 mm
0.945 in
2.8 A
48 VDC
1.8 °

Description

General part information

PD57-1 Series

Bipolar Stepper Motor Hybrid Frame Size 23 200.0 Step 2.8 A 48VDC
