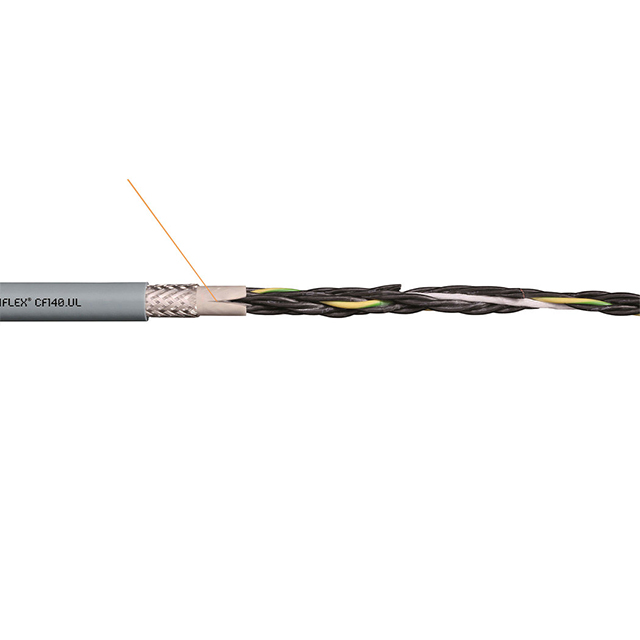

CF140-05-03

Active

Igus

PVC3C/20AWG CTRL 300V FLEX FEET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CF140-05-03

Active

Igus

PVC3C/20AWG CTRL 300V FLEX FEET

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Spool®, Continuous Spool	1	$ 3.25
		2	$ 3.10
		3	$ 3.01
		5	$ 2.91
		7	$ 2.84
		10	$ 2.77
		25	$ 2.59
		50	$ 2.47
		100	$ 2.35

Description

General part information

CF140 Series

3 Conductor Multi-Conductor Cable Gray 20 AWG Braid Enter Number of Feet in Order Quantity

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CF140-05-03	CF140 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Thermoplastic Elastomer (TPE)	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC), Thermoplastic Elastomer (TPE)
Conductor Material	Copper, Bare	Copper, Bare
Conductor Strand	-	41 - 165 strands
Conductor Strand	-	34 AWG
Conductor Strand	-	26 - 34 AWG
Conductor Strand	-	34 AWG
Conductor Strand	-	259
Features	Rip Cord, Flame Retardant	Oil Resistant, UV Resistant, Flame Retardant, Rip Cord
Jacket (Insulation) Diameter	-	19.81 mm
Jacket (Insulation) Diameter	-	0.78 - 13.21 "
Jacket (Insulation) Diameter	-	13.99 - 19.51 mm
Jacket (Insulation) Diameter [diameter]	0.276 in	0.276 - 0.93 in
Jacket (Insulation) Diameter [diameter]	7.01 mm	0.551 - 23.62 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray	Gray
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Number of Conductors	3	2 - 33
Ratings	UL Style 20200	UL Style 20200
Shield Coverage	80 %	80 - 85 %
Shield Material	Copper, Tinned	Copper, Tinned
Shield Type	Braid	Braid
Spool Size	1000 ft	1000 ft
Spool Size	304.8 m	304.8 m
Usage	Industrial, Control	Industrial, Control
Voltage	300 V	300 - 600 V
Wire Gauge	20 AWG	10 - 20 AWG

CF140 Series

PVC5C/18AWG TCER 600V FLEX FEET

Part	Jacket Color	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Spool Size	Spool Size	Shield Coverage	Jacket (Insulation) Material	Features	Length	Number of Conductors	Shield Material	Cable Type	Shield Type	Conductor Material	Voltage	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Usage	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Conductor Strand	Conductor Strand [custom]
Igus CF140US-07-05	Gray	18 AWG	41 strands	34 AWG	1000 ft	304.8 m	85 %	Poly-Vinyl Chloride (PVC)	Flame Retardant, Oil Resistant, UV Resistant	Enter Number of Feet in Order Quantity	5	Copper, Tinned	Multi-Conductor	Braid	Copper, Bare	600 V	Nylon, Poly-Vinyl Chloride (PVC), Polyamide (PA)
Igus CF140US-07-18	Gray	18 AWG	41 strands	34 AWG	1000 ft	304.8 m	85 %	Poly-Vinyl Chloride (PVC)	Flame Retardant, Oil Resistant, UV Resistant	Enter Number of Feet in Order Quantity	18	Copper, Tinned	Multi-Conductor	Braid	Copper, Bare	600 V	Nylon, Poly-Vinyl Chloride (PVC), Polyamide (PA)	16.76 mm	0.66 in
Igus CF140-25-04	Gray	13.5 AWG			1000 ft	304.8 m	80 %	Poly-Vinyl Chloride (PVC)	Flame Retardant, Rip Cord	Enter Number of Feet in Order Quantity	4	Copper, Tinned	Multi-Conductor	Braid	Copper, Bare	300 V	Thermoplastic Elastomer (TPE)	11.51 mm	0.453 "	UL Style 20200	Industrial, Control
Igus CF140US-05-25	Gray	20 AWG			1000 ft	304.8 m	85 %	Poly-Vinyl Chloride (PVC)	Flame Retardant, Oil Resistant, UV Resistant	Enter Number of Feet in Order Quantity	25	Copper, Tinned	Multi-Conductor	Braid	Copper, Bare	600 V	Nylon, Poly-Vinyl Chloride (PVC), Polyamide (PA)					19.81 mm	0.78 "	26, 34 AWG
Igus CF140US-15-04	Gray	16 AWG	65	34 AWG			85 %	Poly-Vinyl Chloride (PVC)	Flame Retardant, Oil Resistant, UV Resistant	Enter Number of Feet in Order Quantity	4	Copper, Tinned	Multi-Conductor	Braid	Copper, Bare	600 V	Nylon, Poly-Vinyl Chloride (PVC), Polyamide (PA)
Igus CF140-15-12-UL	Gray	16 AWG					80 %	Poly-Vinyl Chloride (PVC)	Flame Retardant, Rip Cord	Enter Number of Feet in Order Quantity	12	Copper, Tinned	Multi-Conductor	Braid	Copper, Bare	300 V	Thermoplastic Elastomer (TPE)	16 mm	0.63 in	UL Style 20200	Industrial, Control
Igus CF140US-25-12	Gray	13.5 AWG	105		1000 ft	304.8 m	85 %	Poly-Vinyl Chloride (PVC)	Flame Retardant, Oil Resistant, UV Resistant	Enter Number of Feet in Order Quantity	12	Copper, Tinned	Multi-Conductor	Braid	Copper, Bare	600 V	Nylon, Poly-Vinyl Chloride (PVC), Polyamide (PA)	17.53 mm	0.69 in						34 AWG
Igus CF140US-07-25	Gray	18 AWG	41 strands	34 AWG	1000 ft	304.8 m	85 %	Poly-Vinyl Chloride (PVC)	Flame Retardant, Oil Resistant, UV Resistant	Enter Number of Feet in Order Quantity	25	Copper, Tinned	Multi-Conductor	Braid	Copper, Bare	600 V	Nylon, Poly-Vinyl Chloride (PVC), Polyamide (PA)					19.81 mm	0.78 "
Igus CF140US-15-33	Gray	16 AWG	65	34 AWG			85 %	Poly-Vinyl Chloride (PVC)	Flame Retardant, Oil Resistant, UV Resistant	Enter Number of Feet in Order Quantity	33	Copper, Tinned	Multi-Conductor	Braid	Copper, Bare	600 V	Nylon, Poly-Vinyl Chloride (PVC), Polyamide (PA)	23.62 mm	0.93 in
Igus CF140US-05-18	Gray	20 AWG			1000 ft	304.8 m	85 %	Poly-Vinyl Chloride (PVC)	Flame Retardant, Oil Resistant, UV Resistant	Enter Number of Feet in Order Quantity	18	Copper, Tinned	Multi-Conductor	Braid	Copper, Bare	600 V	Nylon, Poly-Vinyl Chloride (PVC), Polyamide (PA)	16 mm	0.63 in					26, 34 AWG
