HS2P6M26-BP

Active

Switchcraft Inc.

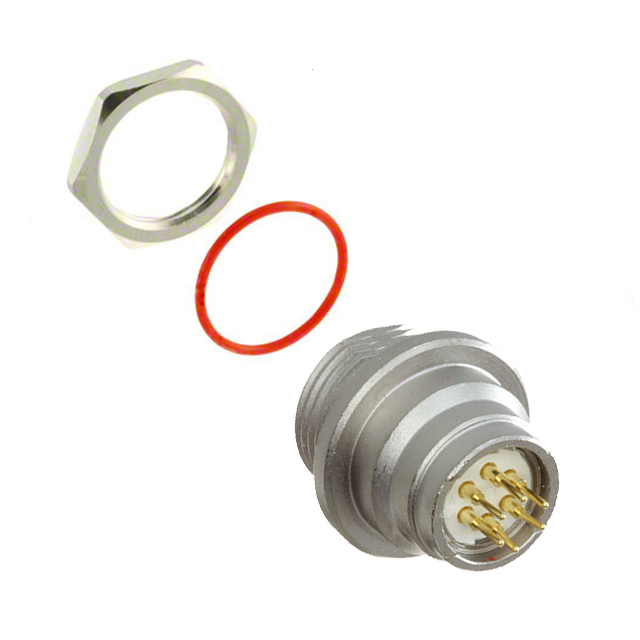

CONN RCPT MALE 6POS GOLD SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE 6POS GOLD SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HS2P6M26-BP	HS2P6M Series

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Color	Silver	Silver
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	6	6
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Electroless Nickel	Electroless Nickel
Shell Material	Copper Alloy	Copper Alloy
Shielding	Shielded	Shielded
Termination	Solder	Solder
Voltage Rating	30 VAC	30 VAC

CONN RCPT MALE 6POS GOLD SOLDER

Part	Primary Material	Applications	Voltage Rating	Shell Material	Number of Positions	Contact Finish - Mating	Connector Type	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Shell Finish	Fastening Type	Ingress Protection	Orientation	Shielding	Mounting Type	Color	Termination	Insert Material	Contact Material
Switchcraft Inc. HS2P6M26-BP	Metal	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	30 VAC	Copper Alloy	6	Gold	Male Pins, Receptacle	Bulkhead - Front Side Nut	135 °C	-40 °C	Electroless Nickel	Push-Pull	IP66, IP67, IP68	Keyed	Shielded	Panel Mount, Through Hole	Silver	Solder	Liquid Crystal Polymer (LCP)	Copper Alloy
Switchcraft Inc. HS2P6M26-BPE	Metal	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	30 VAC	Copper Alloy	6	Gold	Male Pins, Receptacle	Bulkhead - Front Side Nut	135 °C	-40 °C	Electroless Nickel	Push-Pull	IP66, IP67, IP68	Keyed	Shielded	Panel Mount, Through Hole	Silver	Solder	Liquid Crystal Polymer (LCP)	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Male Pins Solder
