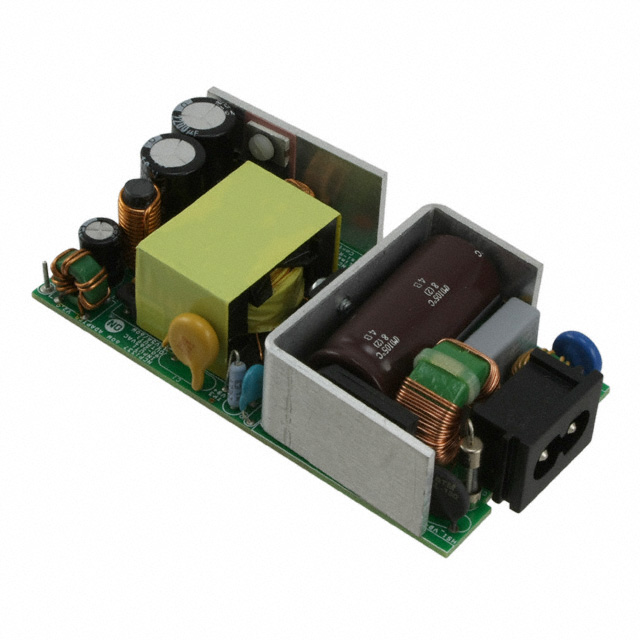

NCP1337ADAPGEVB
ObsoleteON Semiconductor
EVAL BOARD FOR NCP1337ADAPG
NCP1337ADAPGEVB
ObsoleteON Semiconductor
EVAL BOARD FOR NCP1337ADAPG
Description
General part information
NCP1337ADAPGEVB
NCP1337 GreenPoint™ AC/DC, Primary Side 1, Isolated Outputs Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | NCP1337ADAPGEVB |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output | 5 A |
| Frequency - Switching | 130 kHz |
| Isolated Output Count | 1 |
| Main Purpose | Primary Side, AC/DC |
| Output Type | Isolated |
| Power - Output | 60 W |
| Regulator Topology | Flyback |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Utilized IC / Part | NCP1337 |
| Voltage - Input (AC) Maximum | 265 VAC |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output | 12 V |
