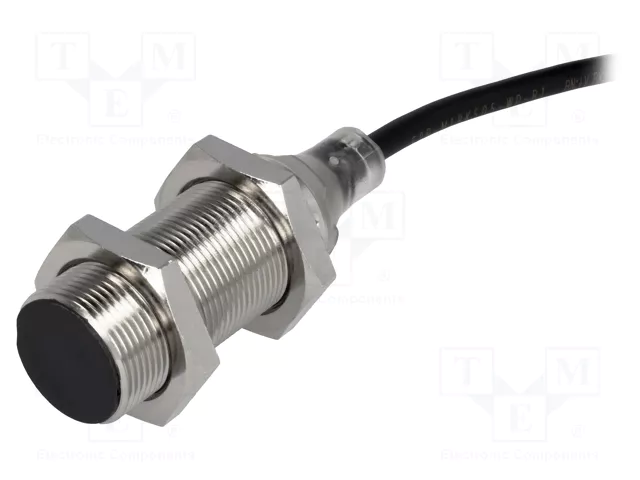

Specification	E2B-M18KS05-WP-C2 2M

Indicator	LED
Ingress Protection	IP67
Material - Body	Nickel-Plated Brass
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Output Type	NPN-NC, 3-Wire
Package / Case	Cylinder, Threaded - M18
Response Frequency	600 Hz
Sensing Distance	0.197 "
Sensor Type	Inductive
Shielding	Shielded
Termination Style	Cable Leads
Voltage - Supply (Maximum)	30 VDC
Voltage - Supply (Minimum)	10 VDC

E2B-M18 Series

Part	Material - Body	Sensor Type	Sensing Distance	Shielding	Response Frequency	Output Type	Ingress Protection	Indicator	Package / Case	Termination Style	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)
Omron Automation and Safety E2B-M18LS05-WP-C1 5M	Nickel-Plated Brass	Inductive	0.197 "	Shielded	600 Hz	3-Wire NPN-NO	IP67	LED	Cylinder Threaded - M18	Cable Leads	70 °C	-25 °C	10 VDC	30 VDC
Omron Automation and Safety E2B-M18KN10-WP-C1 2M	Nickel-Plated Brass	Inductive	0.394 "	Unshielded	400 Hz	3-Wire NPN-NO	IP67	LED	Cylinder Threaded - M18	Cable Leads	70 °C	-25 °C	10 VDC	30 VDC
Omron Automation and Safety E2B-M18LN16-M1-C2	Nickel-Plated Brass	Inductive	0.63 "	Unshielded	400 Hz	3-Wire NPN-NC	IP67	LED	Cylinder Threaded - M18	Connector	70 °C	-25 °C	10 VDC	30 VDC
Omron Automation and Safety E2B-M18KN16-WP-C1 2M	Nickel-Plated Brass	Inductive	0.63 "	Unshielded	400 Hz	3-Wire NPN-NO	IP67	LED	Cylinder Threaded - M18	Cable Leads	70 °C	-25 °C	10 VDC	30 VDC
Omron Automation and Safety E2B-M18KS08-WP-C2 5M	Nickel-Plated Brass	Inductive	0.315 "	Shielded	500 Hz	3-Wire NPN-NC	IP67	LED	Cylinder Threaded - M18	Cable Leads	70 °C	-25 °C	10 VDC	30 VDC
Omron Automation and Safety E2B-M18KN10-WP-B1 5M	Nickel-Plated Brass	Inductive	0.394 "	Unshielded	400 Hz	3-Wire PNP-NO	IP67	LED	Cylinder Threaded - M18	Cable Leads	70 °C	-25 °C	10 VDC	30 VDC
Omron Automation and Safety E2B-M18KS05-M1-C1	Nickel-Plated Brass	Inductive	0.197 "	Shielded	600 Hz	3-Wire NPN-NO	IP67	LED	Cylinder Threaded - M18	Connector	70 °C	-25 °C	10 VDC	30 VDC
Omron Automation and Safety E2B-M18LN10-WP-C2 2M	Nickel-Plated Brass	Inductive	0.394 "	Unshielded	400 Hz	3-Wire NPN-NC	IP67	LED	Cylinder Threaded - M18	Cable Leads	70 °C	-25 °C	10 VDC	30 VDC
Omron Automation and Safety E2B-M18LS08-WP-B1 5M	Nickel-Plated Brass	Inductive	0.315 "	Shielded	500 Hz	3-Wire PNP-NO	IP67	LED	Cylinder Threaded - M18	Cable Leads	70 °C	-25 °C	10 VDC	30 VDC
Omron Automation and Safety E2B-M18LN10-WP-C1 2M	Nickel-Plated Brass	Inductive	0.394 "	Unshielded	400 Hz	3-Wire NPN-NO	IP67	LED	Cylinder Threaded - M18	Cable Leads	70 °C	-25 °C	10 VDC	30 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

e2b_d116-e1_1_5_csm1012652.pdf

E2B-M18KS05-WP-C2 2M | Datasheet
