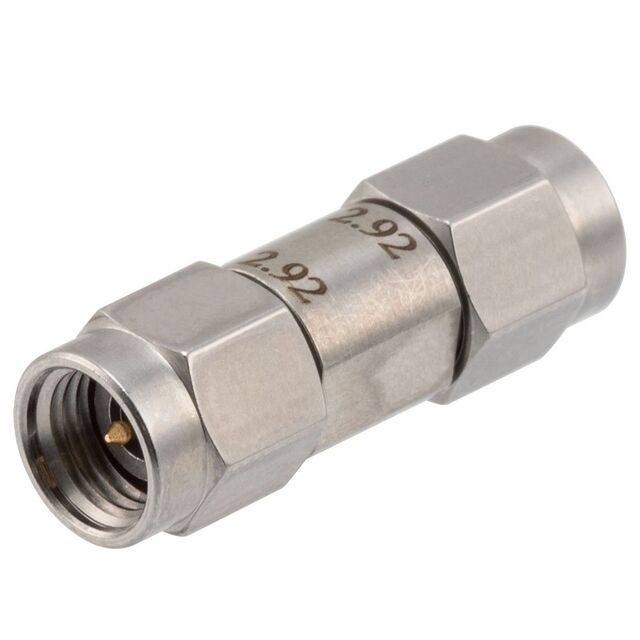

FMAD1608
ActiveFairview Microwave
ADAPT PLUG-PLUG 2.92MM SS
FMAD1608
ActiveFairview Microwave
ADAPT PLUG-PLUG 2.92MM SS
Description
General part information
FMAD1608
Adapter Coaxial Connector 2.92mm (OS-2.9) Plug, Male Pin To 2.92mm (OS-2.9) Plug, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | FMAD1608 |
|---|---|
| Adapter Series Size | 2.92 mm |
| Adapter Type | Plug to Plug |
| Body Finish | Passivated |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male |
| Conversion Type | Same Series |
| Convert From (Adapter End) Plug Size | 2.92 mm |
| Convert From (Adapter End) Type | Male Pin, (OS-2.9) Plug |
| Convert To (Adapter End) | Plug, (OS-2.9) Plug, Male Pin |
| Convert To (Adapter End) Model | OS-2.9 |
| Convert To (Adapter End) Precision | 2.92 mm |
| Convert To (Adapter End) Size | 2.92 mm |
| Convert To (Adapter End) Type | Male Pin, Plug |
| Dielectric Material | Polyphenylene Oxide (PPO) |
| Fastening Type | Threaded |
| Frequency - Max | 40 Gbps |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -65 °C |
| Style | Straight |
