6081947
ActiveSICK, Inc.
ULTRASONIC SENSORS, UC40, UC40-1
6081947
ActiveSICK, Inc.
ULTRASONIC SENSORS, UC40, UC40-1
Description
General part information
6081947

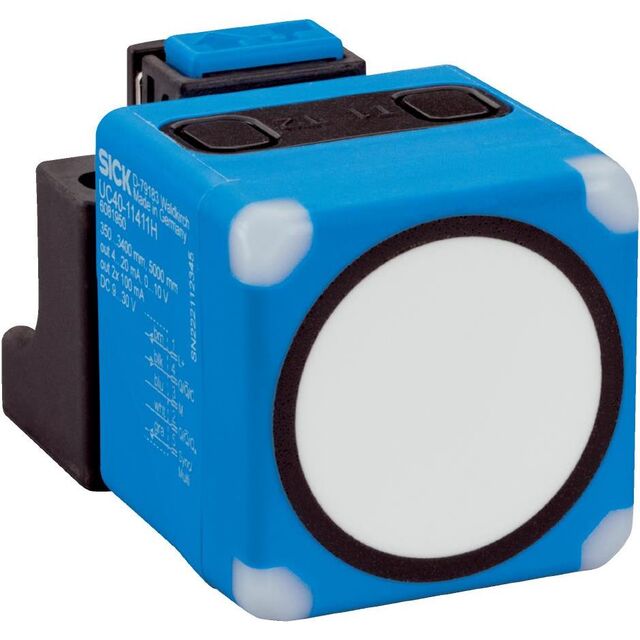

Ultrasonic Proximity Sensor 7.874" ~ 196.850" (200mm ~ 5m) IP65, IP67 Module
Technical Specifications
Parameters and characteristics for this part
| Specification | 6081947 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP65, IP67 |
| Material - Body | Plastic, Polyamide (PA) |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | PNP, NPN, Push-Pull |
| Package / Case | Module |
| Sensing Distance Maximum | 196.85 " |
| Sensing Distance Minimum | 7.874 " |
| Sensor Type | Ultrasonic |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 9 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
