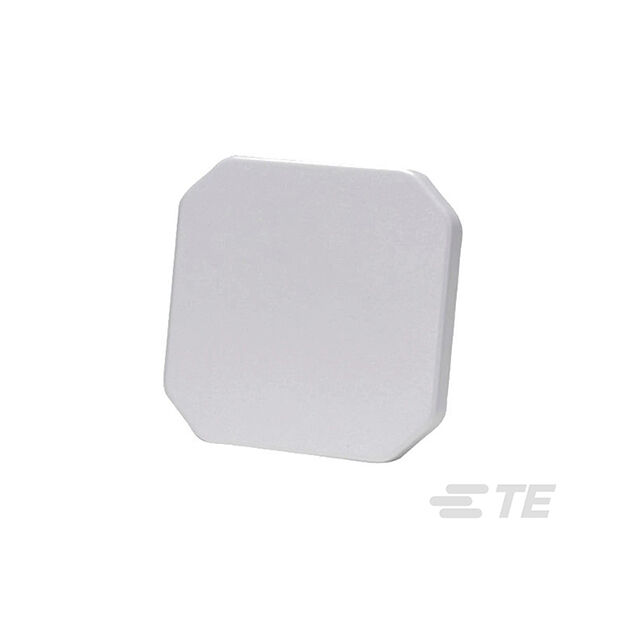

S9025PRRTN

Active

TE Connectivity Raychem Cable Protection

PANEL,RHCP,FIXED,RTNM 902-928MHZ,5DBIC,F

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

PANEL,RHCP,FIXED,RTNM 902-928MHZ,5DBIC,F

Technical Specifications

Parameters and characteristics for this part

Part	Frequency [Min]	Frequency [Max]	Features	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Mounting Type	Number of Bands	Applications	Gain	Antenna Type	Frequency (Center/Band)	Termination	Frequency Group [Max]	Frequency Group [Min]	Height (Max)	Height (Max) [Max]	Ingress Protection	Frequency Range [Max]	Frequency Range [Min]	VSWR	Power - Max [Max]
TE Connectivity Raychem Cable Protection S9025PRRTN	902 MHz	928 MHz	5.5 dBi	5.2 in	18.03 mm	5.2 in
TE Connectivity Raychem Cable Protection S9025PRSMF							Surface Mount	1	General Purpose	5.5 dBi	Panel	915 MHz	N Female RP-SMA Female RP-TNC Female SMA Female	1 GHz	300 MHz	18.03 mm	0.71 in	IP67	928 MHz	902 MHz	1.5
TE Connectivity Raychem Cable Protection S9025PRRTN	902 MHz	928 MHz	5.5 dBi	5.2 in	18.03 mm	5.2 in
TE Connectivity Raychem Cable Protection S9025PLSMF							Chassis Mount	1	General Purpose	5.5 dBi	Panel	915 MHz	SMA Female	1 GHz	300 MHz	18.03 mm	0.71 in	IP67	928 MHz	902 MHz	1.5	10 W
TE Connectivity Raychem Cable Protection S9025PLRTN

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Panel Antenna, Single Band, RFID, External Mount, Stud/Screw/Lug Mount, RP-TNC / TNC, Directional, Single Port, 3 < 6 dBi Peak Gain
