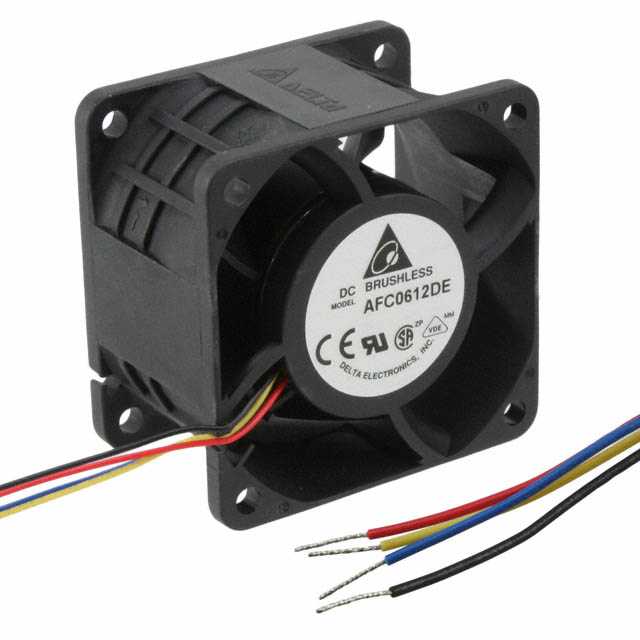

AFC0612DE-AF00
ActiveDelta Electronics
FAN AXIAL 60X38MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
AFC0612DE-AF00
ActiveDelta Electronics
FAN AXIAL 60X38MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AFC0612DE-AF00 |
|---|---|
| Air Flow | 66.7 CFM |
| Air Flow | 1.87 m³/min |
| Approval Agency | CE, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 1.5 A |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 61.5 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 18 W |
| RPM | 12000 RPM |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [y] | 60 mm |
| Static Pressure | 433.2 Pa |
| Static Pressure | 1.739 in H2O |
| Termination | 4 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.2 VDC |
| Voltage Range [Min] | 8 VDC |
| Weight | 117.03 g |
| Weight | 0.258 lb |
| Width [y] | 38 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 25.25 | |
| 10 | $ 23.49 | |||
| 25 | $ 21.14 | |||
| 50 | $ 19.38 | |||
| 120 | $ 18.21 | |||
| 360 | $ 15.86 | |||
| 600 | $ 15.27 | |||
Description
General part information
AFC0612DE-AF00
Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 66.7 CFM (1.87m³/min) 4 Wire Leads
