PUP6C04BU-U
ObsoletePanduit Corp

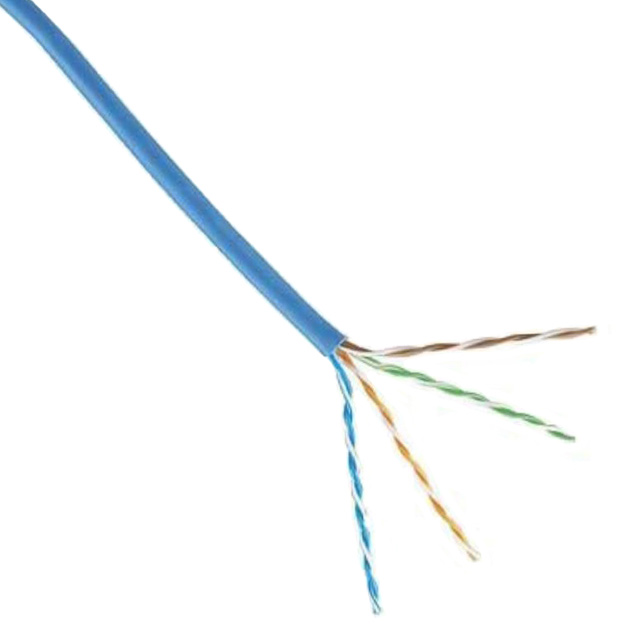

CABLE CAT6 8COND 23AWG BLUE 100'
PUP6C04BU-U
ObsoletePanduit Corp
CABLE CAT6 8COND 23AWG BLUE 100'
Description
General part information
PUP6C04BU-U
8 (4 Pair Twisted) Conductor Multi-Pair, Cat6 Cable Blue 23 AWG 100.0' (30.5m)
Technical Specifications
Parameters and characteristics for this part
| Specification | PUP6C04BU-U |
|---|---|
| Cable Type | Cat6, Multi-Pair |
| Conductor Arrangement | Twisted |
| Conductor Insulation | Polyolefin (PO), Fluorinated Ethylene-Propylene (FEP) |
| Conductor Material | Copper |
| Features | Flame Retardant, Rip Cord |
| Jacket (Insulation) Diameter | 0.224 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC), Plenum |
| Jacket Color | Blue |
| Length | 100 ft, 500 ft, 1000 ft |
| Number of Conductors | 8, 4 |
| Number of Conductors - Pair | 4, 2 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Ratings | ISO, 11801 |
| Wire Gauge | 23 AWG |
