Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | USB3340-EZK | USB3340 Series |
|---|---|---|
| - | - | |
| Embedded | - | False |
| Function | - | Transceiver, USB |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |

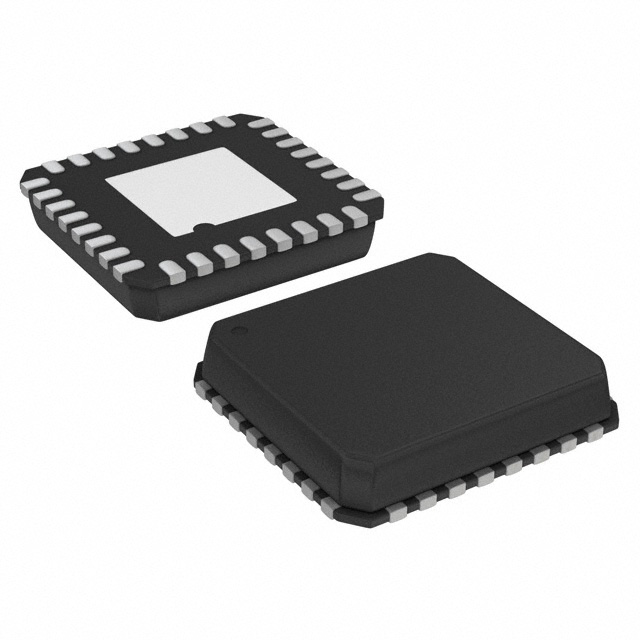

| Package / Case | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad |
| Protocol | USB 2.0 | USB 2.0 |
| Receiver Hysteresis | 150 mV | 150 mV |
| Secondary Attributes | - | ULPI Interface(s) |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 32-QFN | 32-QFN |
| Type | Transceiver | Transceiver, Interface |
| Utilized IC / Part | - | USB3340 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Arrow | N/A | 1 | $ 1.93 | |
| Digikey | Tray | 1 | $ 2.17 | |
| 25 | $ 1.80 | |||
| 100 | $ 1.65 | |||
| Microchip Direct | TRAY | 1 | $ 2.17 | |
| 25 | $ 1.80 | |||
| 100 | $ 1.65 | |||
| 1000 | $ 1.60 | |||
| 5000 | $ 1.57 | |||
USB3340 Series
MULTI-FREQUENCY USB 2.0 ULPI PHY IC WITH VARIABLE I/O VOLTAGE
| Part | Type | Protocol | Package / Case | Supplier Device Package | Receiver Hysteresis | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Function | Utilized IC / Part | Supplied Contents | Embedded | Secondary Attributes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology USB3340-EZK | Transceiver | USB 2.0 | 32-VFQFN Exposed Pad | 32-QFN | 150 mV | 85 °C | -40 °C | Surface Mount | |||||
Microchip Technology USB3340-EZK-TR | |||||||||||||
Microchip Technology USB3340-EZK | |||||||||||||
Microchip Technology EVB-USB3340 | Interface | Transceiver, USB | USB3340 | Board(s) | ULPI Interface(s) | ||||||||
Microchip Technology USB3340-EZK-TR | Transceiver | USB 2.0 | 32-VFQFN Exposed Pad | 32-QFN | 150 mV | 85 °C | -40 °C | Surface Mount | |||||
Microchip Technology USB3340-EZK | |||||||||||||
Microchip Technology EVB-USB3340 |
Description
General part information
USB3340 Series
Microchip's USB334x family of Hi-Speed USB 2.0 transceivers delivers enhanced USB functionality for the portable market with support for the latest USB-IF Battery Charging 1.2 (BC 1.2) specification. This family of devices dramatically reduces the time required for battery charging and system bill-of-material (BOM) costs by up to 60% over competitive solutions. Microchip has positioned itself as a leader in providing innovative solutions in support of the latest USB-IF Battery Charging specification. The new USB334x provides an excellent compliment to USB charging ports by enabling portable devices to negotiate up to three times the charging current compared to a standard USB port, resulting in faster battery charging. The USB334x is designed in a small footprint package and reduces the number of external components through the integration of voltage regulators and other discretes.
Microchip's complimentary and confidential [MicroCHECK](https://www.microchip.com/en-us/support/design-help/design-check-services) design review service, which offers insight from the initial concept to the final PCB layout, is available to customers who are using our products in their projects. You can confidently submit your design materials in a secure and private setting, and our expert engineers will provide individualized feedback to enhance your design. MicroCHECK design review service is subject to Microchip's [Program Terms and Conditions](https://www.microchip.com/en-us/support/design-help/design-check-services/design-check-services-program-terms-and-conditions) and requires a myMicrochip account.
