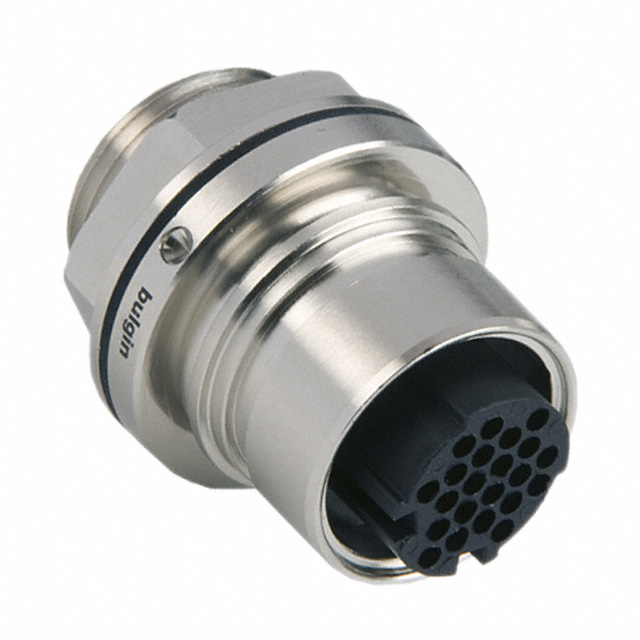

Specification	PXM6012/22S/CR

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Solder Cup, Crimp
Fastening Type	Push-Twist
Housing Color	Silver
Includes	Washer, Connector, Nut
Includes Total Count	3 pcs
Ingress Protection Description	Dust Tight, Water Resistant, Waterproof
Ingress Protection IP Rating	IP69K, IP68, IP66
Mounting Feature	Rear Side Nut, Bulkhead
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	22
Operating Temperature (Max)	120 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Position Types	Power
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shielding	Shielded, Unshielded
Type	For Female Sockets

Buccaneer 6000 Series

Part	Primary Material	Mounting Type	Housing Color	Shielding	Material Flammability Rating	Shell Material	Connector Type	Number of Positions	Position Types	Type	Ingress Protection Description	Ingress Protection IP Rating	Features	Fastening Type	Orientation	Contact Type	Operating Temperature (Max)	Operating Temperature (Min)	Contact Shape	Note	Contact Termination	Contact Finish	Contact Material	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Termination Finish	Cable Type	Color	Style	Length	Number of Contacts	Shell Finish	Contact Finish - Mating	Cable Opening (Min)	Cable Opening (Max)	Current Rating	Voltage Rating	Voltage Rating (Type)	Termination
BULGIN LIMITED PXP6010/02P/CR/0405	Plastic	Free Hanging (In-Line)	Gray	Unshielded	UL94 V-0	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)	Plug Housing	2	Power	For Male Pins	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Backshell Coupling Nut	Push-Twist	Keyed	Crimp Solder Cup
BULGIN LIMITED PXP6010/16P/CR/0405	Plastic	Free Hanging (In-Line)	Gray	Unshielded	UL94 V-0	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)	Plug Housing	16	Power	For Male Pins	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Backshell Coupling Nut	Push-Twist	Keyed	Crimp Solder Cup	120 °C	-40 °C	Circular	Contacts Not Included
BULGIN LIMITED PXP6010/03P/CR/0910	Plastic	Free Hanging (In-Line)	Gray	Unshielded	UL94 V-0	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)	Plug Housing	3	PE Power	For Male Pins	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Backshell Coupling Nut	Push-Twist	Keyed	Crimp Solder Cup	120 °C	-40 °C	Circular	Contacts Not Included
BULGIN LIMITED SA3542/P										Power						Pin					Crimp	Gold	Brass	25.5 AWG	22 AWG	Gold
BULGIN LIMITED PXP6010/02S/CR/0709	Plastic	Free Hanging (In-Line)	Gray	Unshielded	UL94 V-0	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)	Plug Housing	2	Power	For Female Sockets	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Backshell Coupling Nut	Push-Twist	Keyed	Crimp Solder Cup
BULGIN LIMITED PXP6038/2M00		Free Hanging (In-Line)		Shielded			Ethernet Plug to Plug RJ45	8					Circular Push Pull Coupling														Round Cable	Black	Cat5e Industrial Environments	6.56 ft	8
BULGIN LIMITED PXM6011/03P/CR/0405	Metal	Free Hanging (In-Line)	Silver	Unshielded		Brass	Receptacle Housing	3	PE Power	For Male Pins	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Backshell	Push-Twist	Keyed	Crimp Solder Cup																Nickel
BULGIN LIMITED PXM6011/16S/CR/0709	Metal	Free Hanging (In-Line)	Silver	Unshielded		Brass	Receptacle Housing	16	Power	For Female Sockets	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Backshell	Push-Twist	Keyed	Crimp Solder Cup																Nickel
BULGIN LIMITED PXP6010/02S/ST/0507	Plastic	Free Hanging (In-Line)		Unshielded	UL94 V-0	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)	Female Sockets Receptacle	2	Power		Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Coupling Nut UV Resistant	Push-Twist	Keyed		120 °C	-40 °C										Gray					Nickel	0.197 in	0.276 in	16 A	277 VAC	DC	Screw
BULGIN LIMITED PXM6011/08P/CR/0405	Metal	Free Hanging (In-Line)	Silver	Unshielded		Brass	Receptacle Housing	8	Power	For Male Pins	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Backshell	Push-Twist	Keyed	Crimp Solder Cup																Nickel
