Description
General part information
2009

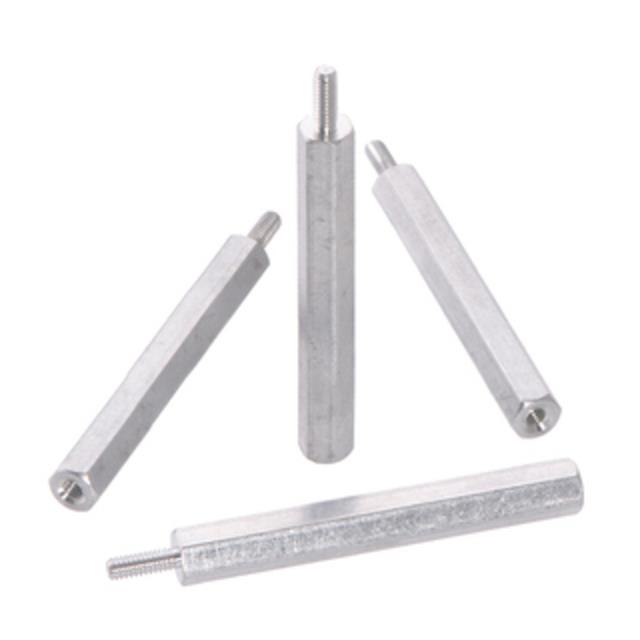

Hex Standoff Threaded #2-56 Aluminum 1.500" (38.10mm) 1 1/2"
Technical Specifications
Parameters and characteristics for this part
| Specification | 2009 |
|---|---|
| Between Board Height | 1.5 in |
| Diameter - Outside | 0.188 in |
| Diameter - Outside (Measured) | 0.188 in |
| Diameter - Outside (Nominal) | 0.1875 in |
| Diameter - Outside Shape | Hex |
| Gender | Female, Male |
| Length - Overall | 1.75 in |
| Material | Aluminum |
| Screw Thread Size | #2-56 |
| Thread Type | Hex |
| Threaded/Unthreaded | Threaded |
| Type | Hex Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
