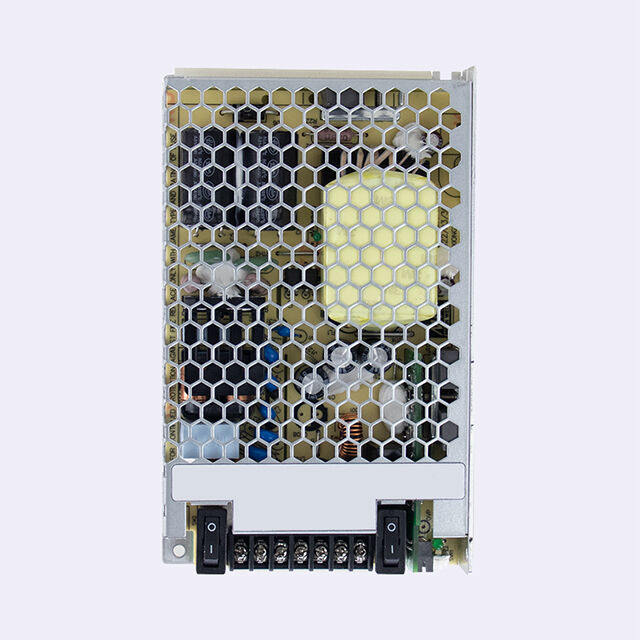

LAD-120D
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 55.2V 122W
LAD-120D
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 55.2V 122W
Description
General part information
LAD-120D
Enclosed AC DC Converters 2 Output 55.2V 90 ~ 264 VAC, 127 ~ 370 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | LAD-120D |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, UKCA, EAC, CE, CB |
| Current - Output 1 | 1.21 A |
| Efficiency | 88 % |
| Features | Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 2 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Power (Watts) | 122 W |
| Size / Dimension Height | 1.18 in |
| Size / Dimension Length | 6.26 in |
| Size / Dimension Width | 3.82 in |
| Standard Number | 62368-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Input (DC) Maximum | 370 V |
| Voltage - Input (DC) Minimum | 127 VDC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 55.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
