SML-LX1206GW-TR

Active

Lumex Opto/Components Inc.

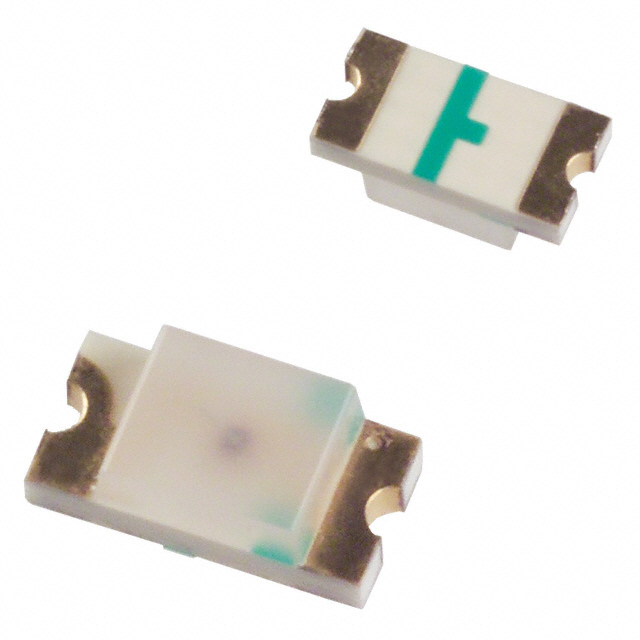

LED GREEN DIFFUSED 1206 SMD

Deep-Dive with AI

Search across all available documentation for this part.

SML-LX1206GW-TR

Active

Lumex Opto/Components Inc.

LED GREEN DIFFUSED 1206 SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.42
		10	$ 0.26
		100	$ 0.15
		1000	$ 0.12
	Digi-Reel®	1	$ 0.42
		10	$ 0.26
		100	$ 0.15
		1000	$ 0.12
	Tape & Reel (TR)	3000	$ 0.11
		6000	$ 0.10
		15000	$ 0.09
		30000	$ 0.09
		75000	$ 0.08

Description

General part information

SML-LX1206 Series

Green LED Indication - Discrete 2.2V 1206 (3216 Metric)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SML-LX1206GW-TR	SML-LX1206 Series

Color	Green	Red, Green, Yellow, Blue, Amber, White
Configuration	Standard	Standard, Independent
Current - Test	20 mA	20 mA
Height (Max)	-	1.23 mm
Height (Max) [Max] [z]	1.1 mm	1.1 - 1.6 mm
Lens Color	White	White, Colorless, Yellow
Lens Size [x]	2 mm	2 mm
Lens Size [y]	1.6 mm	1.5 - 1.6 mm
Lens Style	Rectangle with Flat Top	Rectangle with Flat Top
Lens Transparency	Diffused	Diffused, Clear
Millicandela Rating	10 mcd	6 - 90 mcd
Mounting Type	Surface Mount	Surface Mount
Package / Case	1206 (3216 Metric)	1206 (3216 Metric)
Size / Dimension [x]	3.2 mm	3.2 mm
Size / Dimension [y]	1.6 mm	1.5 - 1.6 mm
Supplier Device Package	1206	1206
Viewing Angle	160 °	125 - 160 °
Voltage - Forward (Vf) (Typ)	2.2 V	1.7 - 3.5 V
Wavelength - Peak	565 nm	525 - 660 nm
Wavelength - Peak	-	640 nm

SML-LX1206 Series

LED RED DIFFUSED 1206 SMD

Part	Configuration	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Color	Mounting Type	Current - Test	Lens Size [y]	Lens Size [x]	Lens Color	Supplier Device Package	Wavelength - Peak	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Viewing Angle	Lens Transparency	Height (Max) [Max] [z]	Lens Style	Height (Max) [Max]
Lumex Opto/Components Inc. SML-LX1206SRW-TR	Standard	1206 (3216 Metric)	1.6 mm	3.2 mm	Red	Surface Mount	20 mA	1.6 mm	2 mm	White	1206	660 nm	15 mcd	1.8 V	160 °	Diffused	1.1 mm	Rectangle with Flat Top
Lumex Opto/Components Inc. SML-LX1206SOC-TR	Standard	1206 (3216 Metric)	1.6 mm	3.2 mm		Surface Mount	20 mA	1.5 mm	2 mm	Colorless	1206	610 nm	70 mcd	2 V	140 °	Clear	1.1 mm	Rectangle with Flat Top
Lumex Opto/Components Inc. SML-LX1206GW-TR	Standard	1206 (3216 Metric)	1.6 mm	3.2 mm	Green	Surface Mount	20 mA	1.6 mm	2 mm	White	1206	565 nm	10 mcd	2.2 V	160 °	Diffused	1.1 mm	Rectangle with Flat Top
Lumex Opto/Components Inc. SML-LX1206SRC-TR	Standard	1206 (3216 Metric)	1.6 mm	3.2 mm	Red	Surface Mount	20 mA	1.5 mm	2 mm	Colorless	1206	660 nm	25 mcd	1.7 V	140 °	Clear	1.1 mm	Rectangle with Flat Top
Lumex Opto/Components Inc. SML-LX1206SYC-TR	Standard	1206 (3216 Metric)	1.6 mm	3.2 mm	Yellow	Surface Mount	20 mA	1.5 mm	2 mm	Colorless	1206	590 nm	70 mcd	2 V	140 °	Clear	1.1 mm	Rectangle with Flat Top
Lumex Opto/Components Inc. SML-LX1206YC-TR	Standard	1206 (3216 Metric)	1.6 mm	3.2 mm	Yellow	Surface Mount	20 mA	1.5 mm	2 mm	Colorless	1206	590 nm	39 mcd	2 V	130 °	Clear	1.1 mm	Rectangle with Flat Top
Lumex Opto/Components Inc. SML-LX1206USBC-TR	Standard	1206 (3216 Metric)	1.6 mm	3.2 mm	Blue	Surface Mount	20 mA	1.5 mm	2 mm	Colorless	1206		25 mcd	3.5 V	140 °	Clear	1.1 mm	Rectangle with Flat Top
Lumex Opto/Components Inc. SML-LX1206UPGC-TR	Standard	1206 (3216 Metric)	1.6 mm	3.2 mm	Green	Surface Mount	20 mA	1.5 mm	2 mm	Colorless	1206	525 nm	45 mcd	3.5 V	140 °	Clear	1.1 mm	Rectangle with Flat Top
Lumex Opto/Components Inc. SML-LX1206AW-TR		1206 (3216 Metric)	1.6 mm	3.2 mm	Amber	Surface Mount	20 mA	1.6 mm	2 mm	White	1206	610 nm	6 mcd	2 V	160 °	Diffused		Rectangle with Flat Top	1.23 mm
Lumex Opto/Components Inc. SML-LX1206IW-TR	Standard	1206 (3216 Metric)	1.6 mm	3.2 mm	Red	Surface Mount	20 mA	1.6 mm	2 mm	White	1206	635 nm	6 mcd	2 V	160 °	Diffused	1.1 mm	Rectangle with Flat Top
