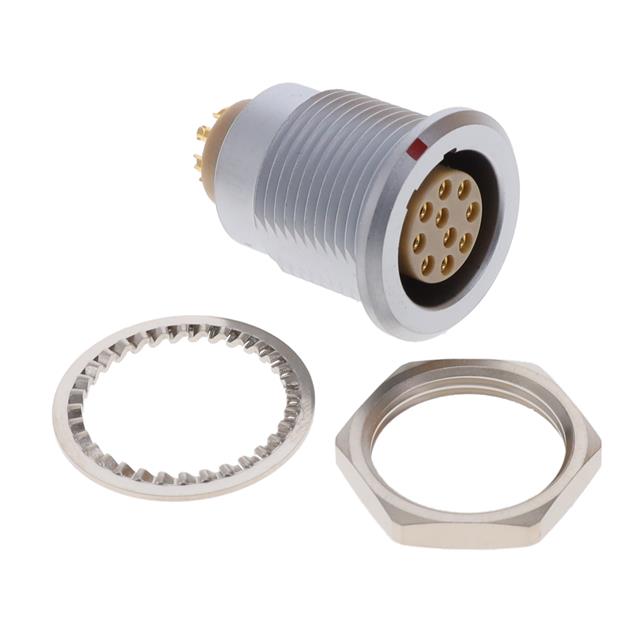

EGB.2B.310.CLL

Active

LEMO

CONN RCPT FMALE 10P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EGB.2B.310.CLL

Active

LEMO

CONN RCPT FMALE 10P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 47.05

Description

General part information

EGB.2B Series

10 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EGB.2B.310.CLL	EGB.2B Series

Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	8 A	2 - 15 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount
Number of Positions	10	4 - 26
Number of Positions	-	16
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	B	B
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	310	304 - 326
Shielding	Shielded	Shielded
Termination	-	Solder, Crimp

EGB.2B Series

CONN RCPT FMALE 16POS GOLD SLDR

Part	Ingress Protection	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Material	Fastening Type	Insert Material	Mounting Type	Current Rating (Amps)	Connector Type	Mounting Feature	Color	Shell Finish	Shell Material	Contact Finish - Mating	Shielding	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Number of Positions	Orientation	Number of Positions
LEMO EGB.2B.316.CLN	IP50	UL94 V-0	59 Áin	1.5 Ám	Solder	Bronze	Push-Pull	Polyetheretherketone (PEEK)	Panel Mount, Through Hole	6 A	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	Silver	Chrome	Brass	Gold	Shielded	316	-55 °C	250 °C	Metal	16	B
LEMO EGB.2B.305.CLL	IP50	UL94 V-0	59 Áin	1.5 Ám		Bronze	Push-Pull	Polyetheretherketone (PEEK)		14 A	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	Silver	Chrome	Brass	Gold	Shielded	305	-55 °C	250 °C	Metal		B
LEMO EGB.2B.312.CYM	IP50	UL94 V-0	59 Áin	1.5 Ám	Crimp	Bronze	Push-Pull	Polyetheretherketone (PEEK)		7 A	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	Silver	Chrome	Brass	Gold	Shielded	312	-55 °C	250 °C	Metal		B	12
LEMO EGB.2B.326.CLL	IP50	UL94 V-0	59 Áin	1.5 Ám		Bronze	Push-Pull	Polyetheretherketone (PEEK)		2 A	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	Silver	Chrome	Brass	Gold	Shielded	326	-55 °C	250 °C	Metal		B	26
LEMO EGB.2B.310.CLL	IP50	UL94 V-0	59 Áin	1.5 Ám		Bronze	Push-Pull	Polyetheretherketone (PEEK)		8 A	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	Silver	Chrome	Brass	Gold	Shielded	310	-55 °C	250 °C	Metal		B	10
LEMO EGB.2B.316.CLL	IP50	UL94 V-0	59 Áin	1.5 Ám		Bronze	Push-Pull	Polyetheretherketone (PEEK)		6 A	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	Silver	Chrome	Brass	Gold	Shielded	316	-55 °C	250 °C	Metal	16	B
LEMO EGB.2B.304.CLL	IP50	UL94 V-0	59 Áin	1.5 Ám		Bronze	Push-Pull	Polyetheretherketone (PEEK)		15 A	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	Silver	Chrome	Brass	Gold	Shielded	304	-55 °C	250 °C	Metal		B	4
