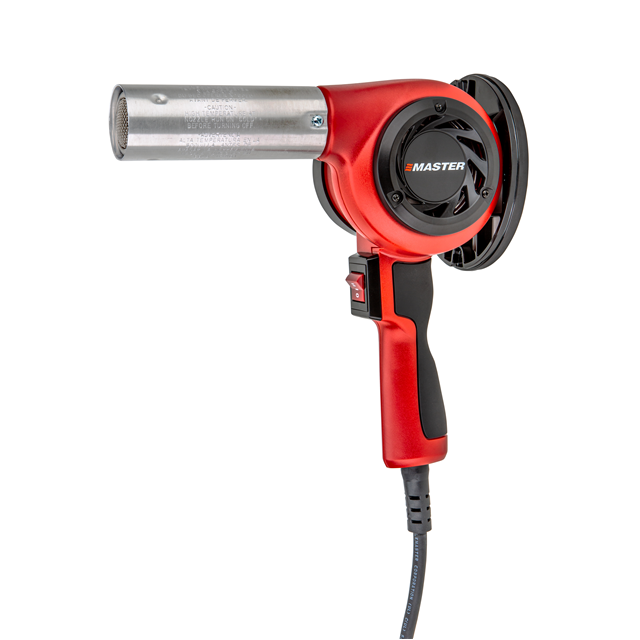

HG-201T-00-MC

Active

MASTER APPLIANCE

MASTER HEAT GUN, PLASTIC HOUSING, 400, MOMENTARY CONTACT SWITCH, 120V

Search across all available documentation for this part.

Active

MASTER APPLIANCE

MASTER HEAT GUN, PLASTIC HOUSING, 400, MOMENTARY CONTACT SWITCH, 120V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HG-201T-00-MC	HG-201T Series

Air Flow	27 CFM	27 CFM
Approval Agency Marking	cULus	cULus
Color	Red	Red
Current	5 A	5 A
Features	6' Cord, Field Changeable Heating Element, 3-Stage Switch, Built-In Adjustable Base	6' Cord, Field Changeable Heating Element, 3-Stage Switch, Built-In Adjustable Base
Includes	Heat Gun	Heat Gun
Nozzle Opening	1.5 in	1.5 in
Nozzle Opening	38.1 mm	38.1 mm
Power - Rated	600 W	600 W
Temperature Range	400 °F	400 °F
Temperature Range	204 °C	204 °C
Tool Type	Heat Gun	Heat Gun
Voltage	120 V	120 V

MASTER HEAT GUN KIT PLASTIC HSNG

Part	Air Flow	Temperature Range	Temperature Range	Voltage	Nozzle Opening	Nozzle Opening	Approval Agency Marking	Includes	Power - Rated	Features	Color	Tool Type	Current
MASTER APPLIANCE HG-201T-00-K	27 CFM	400 °F	204 °C	120 V	1.5 in	38.1 mm	cULus	Heat Gun	600 W	3-Stage Switch, 6' Cord, Built-In Adjustable Base, Field Changeable Heating Element	Red	Heat Gun	5 A
MASTER APPLIANCE HG-201T-00-MC	27 CFM	400 °F	204 °C	120 V	1.5 in	38.1 mm	cULus	Heat Gun	600 W	3-Stage Switch, 6' Cord, Built-In Adjustable Base, Field Changeable Heating Element	Red	Heat Gun	5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 194.98
Newark	Each	1	$ 229.00

General part information

Heat Gun 120V 400°F (204°C) 600W Red
