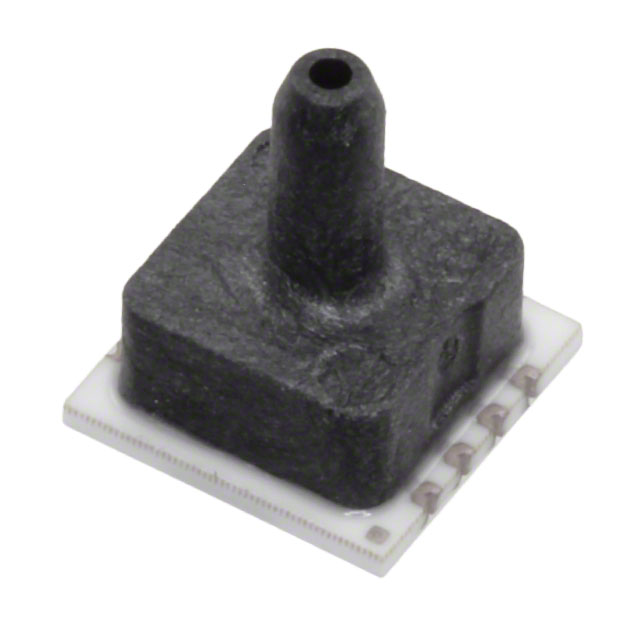

1451-015A-T
ObsoleteTE Connectivity Measurement Specialties
SENSOR 15PSIA 0.09" .06V
Deep-Dive with AI
Search across all available documentation for this part.
1451-015A-T
ObsoleteTE Connectivity Measurement Specialties
SENSOR 15PSIA 0.09" .06V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1451-015A-T |
|---|---|
| Accuracy | 0.25 % |
| Applications | Board Mount |
| Maximum Pressure [Max] | 310.26 kPa |
| Maximum Pressure [Max] | 45 PSI |
| Mounting Type | Surface Mount |
| Operating Pressure [custom] | 15 PSI |
| Operating Pressure [custom] | 103.42 kPa |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output | 3V |
| Output [Max] | 60 mV |
| Output [Min] | 0 mV |
| Output Type | Wheatstone Bridge |
| Package / Case | 10-SMD Module |
| Port Size | 2.29 mm |
| Port Size | Male, Tube |
| Port Size | 0.09 " |
| Port Style | Barbless |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply [Max] | 12 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1451-015A-T
Pressure Sensor 15PSI (103.42kPa) Absolute Male - 0.09" (2.29mm) Tube 0 mV ~ 60 mV (3V) 10-SMD Module
Documents
Technical documentation and resources
No documents available
