1503-Y
ActiveCurtis Industries

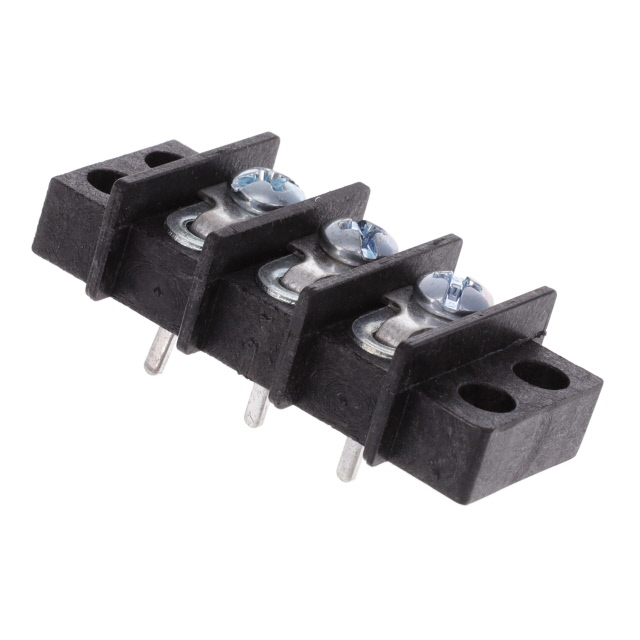

CONN BARRIER STRIP 3CIRC 0.375"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1503-Y
ActiveCurtis Industries
CONN BARRIER STRIP 3CIRC 0.375"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1503-Y | 1503 Series |
|---|---|---|
| Barrier Type | 2 Wall (Dual) | 2 Wall (Dual) |
| Bottom Termination | PC Pin | Closed, PC Pin |
| Current Rating (Amps) | 20 A | 20 A |
| Features | Flange | Flange |
| Material - Insulation | Polyphenylene Oxide (PPO) | Polyphenylene Oxide (PPO) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Chassis, Panel, Through Hole | Panel, Chassis, Chassis, Panel, Through Hole |
| Number of Circuits | 3 | 3 |
| Number of Rows | 2 | 2 |
| Number of Wire Entries | 6 | 6 |
| Operating Temperature | 110 °C | 110 °C |
| Pitch [x] | 9.53 mm | 9.53 mm |
| Pitch [x] | 0.375 in | 0.375 in |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Finish | - | Tin |
| Terminal Screw Material | Steel | Steel |
| Top Termination | Screws | Screws with Solder Lugs, Single, Screws, Screws with Solder Lugs, Dual |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 10 AWG | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.10 | |
| 10 | $ 1.59 | |||
| 30 | $ 1.47 | |||
| 50 | $ 1.32 | |||
| 100 | $ 1.29 | |||
| 250 | $ 1.14 | |||
1503 Series
CONN BARRIER STRIP 3CIRC 0.375"
| Part | Number of Rows | Pitch [x] | Pitch [x] | Terminal Screw Finish | Number of Wire Entries | Mounting Type | Material Flammability Rating | Top Termination | Features | Number of Circuits | Bottom Termination | Wire Gauge [Max] | Wire Gauge [Min] | Current Rating (Amps) | Operating Temperature | Barrier Type | Terminal Block Type | Material - Insulation | Terminal Screw Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries 1503-3/4ST | 2 | 9.53 mm | 0.375 in | Tin | 6 | Chassis, Panel | UL94 V-0 | Screws with Solder Lugs, Single | Flange | 3 | Closed | 22 AWG | 10 AWG | 20 A | 110 °C | 2 Wall (Dual) | Barrier Block | Polyphenylene Oxide (PPO) | |
Curtis Industries 1503-Y | 2 | 9.53 mm | 0.375 in | 6 | Chassis, Panel, Through Hole | UL94 V-0 | Screws | Flange | 3 | PC Pin | 22 AWG | 10 AWG | 20 A | 110 °C | 2 Wall (Dual) | Barrier Block | Polyphenylene Oxide (PPO) | Steel | |
Curtis Industries 1503-YSY | 2 | 9.53 mm | 0.375 in | 6 | Chassis, Panel, Through Hole | UL94 V-0 | Screws | Flange | 3 | PC Pin | 22 AWG | 10 AWG | 20 A | 110 °C | 2 Wall (Dual) | Barrier Block | Polyphenylene Oxide (PPO) | Steel | |
Curtis Industries 1503-ST | 2 | 9.53 mm | 0.375 in | Tin | 6 | Chassis, Panel | UL94 V-0 | Screws with Solder Lugs, Dual | Flange | 3 | Closed | 22 AWG | 10 AWG | 20 A | 110 °C | 2 Wall (Dual) | Barrier Block | Polyphenylene Oxide (PPO) |
Description
General part information
1503 Series
3 Circuit 0.375" (9.53mm) Barrier Block Connector Screws
