1241.6612.1120000

Active

SCHURTER Inc.

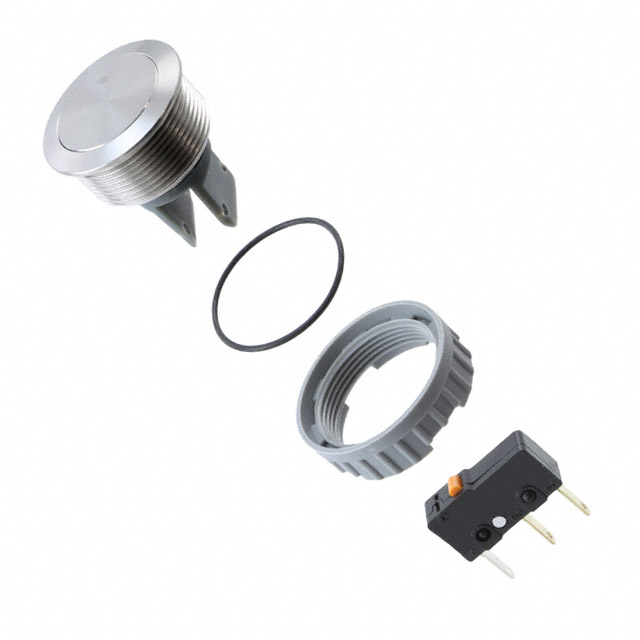

SWITCH PUSHBUTTON SPDT 5A 125V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH PUSHBUTTON SPDT 5A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	1241.6612.1120000

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	5 A
Electrical Life	200000 Cycles
Ingress Protection	IP40
Mechanical Life	1500000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16.1 mm
Switch Function	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)
Type	Anti-Vandal
Voltage Rating - AC	125 V

SWITCH PUSHBUTTON SPDT 5A 125V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mechanical Life	Voltage Rating - AC	Color - Actuator/Cap	Actuator Type	Type	Termination Style	Actuator Marking	Switch Function	Mounting Type	Electrical Life	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Ingress Protection	Circuit
SCHURTER Inc. 1241.6612.1120000	-25 °C	85 °C	1500000 Cycles	125 V	Silver	Button, Flush, Round	Anti-Vandal	Quick Connect - 0.110" (2.8mm)	No Marking	On-Mom	Panel Mount, Front	200000 Cycles	16.1 mm	5 A	IP40	SPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 17.87

General part information

Pushbutton Switch SPDT Anti-Vandal Panel Mount, Front
