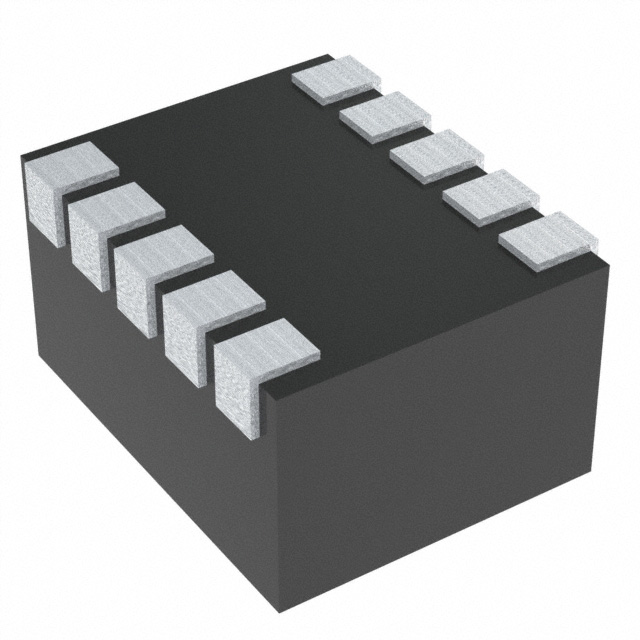

MAXM17624AMB+T
ActiveAnalog Devices Inc./Maxim Integrated
IC REG BUCK ADJ 1A 10EMGA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAXM17624AMB+T
ActiveAnalog Devices Inc./Maxim Integrated
IC REG BUCK ADJ 1A 10EMGA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAXM17624AMB+T | MAXM17624 Series |
|---|---|---|
| Board Type | - | Fully Populated |
| Current - Output | - | 1 A |
| Frequency - Switching | - | 4 MHz |
| Main Purpose | - | DC/DC, Step Down |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Outputs and Type | - | Non-Isolated |
| Outputs and Type | - | 1 |
| Package / Case | 10-SMD Module | 10-SMD Module |
| Regulator Topology | - | Buck |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 10-eMGA | 10-eMGA |
| Supplier Device Package [x] | 2.6 | 2.6 |
| Supplier Device Package [y] | 2.1 | 2.1 |
| Utilized IC / Part | - | MAXM17624 |
| Voltage - Input | - | 3.6 V |
| Voltage - Input | - | 5.5 V |
| Voltage - Input (Max) [Max] | 5.5 V | 5.5 V |
| Voltage - Input (Min) [Min] | 2.9 V | 2.9 V |
| Voltage - Output | - | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.54 | |
| 10 | $ 3.71 | |||
| 25 | $ 3.24 | |||
| 100 | $ 2.71 | |||
| 250 | $ 2.45 | |||
| 500 | $ 2.30 | |||
| 1000 | $ 2.17 | |||
| Digi-Reel® | 1 | $ 5.54 | ||
| 10 | $ 3.71 | |||
| 25 | $ 3.24 | |||
| 100 | $ 2.71 | |||
| 250 | $ 2.45 | |||
| 500 | $ 2.30 | |||
| 1000 | $ 2.17 | |||
| Tape & Reel (TR) | 2500 | $ 2.03 | ||
| 5000 | $ 1.98 | |||
MAXM17624 Series
EVAL BOARD FOR MAXM17624
| Part | Regulator Topology | Frequency - Switching | Outputs and Type | Outputs and Type | Utilized IC / Part | Voltage - Output | Board Type | Main Purpose | Voltage - Input [Min] | Voltage - Input [Max] | Current - Output | Supplied Contents | Mounting Type | Voltage - Input (Max) [Max] | Supplier Device Package [x] | Supplier Device Package | Supplier Device Package [y] | Voltage - Input (Min) [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAXM17624EVKIT# | Buck | 4 MHz | Non-Isolated | 1 | MAXM17624 | 3.3 V | Fully Populated | DC/DC, Step Down | 3.6 V | 5.5 V | 1 A | Board(s) | |||||||||
Analog Devices Inc./Maxim Integrated MAXM17624AMB+ | Surface Mount | 5.5 V | 2.6 | 10-eMGA | 2.1 | 2.9 V | 125 °C | -40 °C | 10-SMD Module | ||||||||||||
Analog Devices Inc./Maxim Integrated MAXM17624EVKITE# | Buck | 4 MHz | Non-Isolated | 1 | MAXM17624 | 3.3 V | Fully Populated | DC/DC, Step Down | 3.6 V | 5.5 V | 1 A | Board(s) | |||||||||
Analog Devices Inc./Maxim Integrated MAXM17624AMB+T | Surface Mount | 5.5 V | 2.6 | 10-eMGA | 2.1 | 2.9 V | 125 °C | -40 °C | 10-SMD Module |
Description
General part information
MAXM17624 Series
DC DC Converter Output 2.9V - 5.5V Input
