R12P15D

Active

RECOM Power

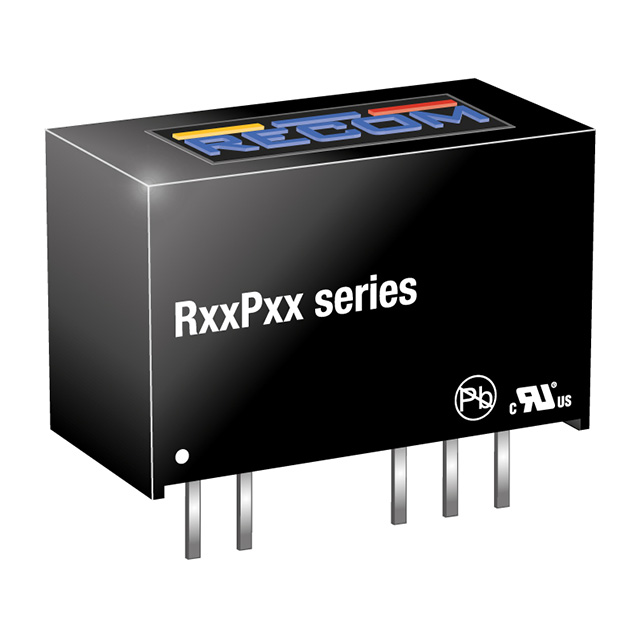

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1W DC/DC 5.2KV UNREG 12VIN +/-15VOUT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

R12P15D

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1W DC/DC 5.2KV UNREG 12VIN +/-15VOUT

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 14.02
		5	$ 13.57
		10	$ 12.94
		25	$ 12.56
		50	$ 12.37
		100	$ 12.02
		250	$ 11.21
Sager	N/A	1	$ 14.02
		5	$ 13.57
		10	$ 12.94
		25	$ 12.56
		50	$ 12.37
		100	$ 12.02
		250	$ 11.21

Description

General part information

R12P15 Series

Isolated DC/DC Converters - Through Hole 1W 24VIN 12VOUT CONT SHORT CIR PRTCT

Documents

Technical documentation and resources

Datasheet

Document

Datasheet

Specification	R12P15D	R12P15 Series

Applications	ITE (Commercial), Medical	ITE (Commercial), Medical
Current - Output (Max)	33 mA	33 - 55 mA
Current - Output (Max)	-	66 mA
Efficiency	80 %	80 - 83 %
Features	SCP	SCP
Mounting Type	Through Hole	Through Hole
Number of Outputs	2	1 - 2
Operating Temperature [Max]	90 °C	85 - 90 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	7-SIP Module, 5 Leads	7-SIP Module, 5 Leads, 7-SIP Module, 4 Leads
Size / Dimension [x]	0.77 in	0.77 in
Size / Dimension [x]	19.7 mm	19.7 mm
Size / Dimension [y]	0.39 "	0.39 "
Size / Dimension [y]	9.8 mm	9.8 mm
Size / Dimension [z]	12.5 mm	12.5 mm
Size / Dimension [z]	0.49 in	0.49 in
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	13.2 V	13.2 V
Voltage - Input (Min) [Min]	10.8 V	10.8 V
Voltage - Isolation	6.4 kV	6.4 - 8 kV
Voltage - Output 1	15 V	15 V
Voltage - Output 2	-15 V	-15 - -9 V

Part

Number of Outputs

Features

Voltage - Input (Min) [Min]

Voltage - Input (Max) [Max]

Voltage - Isolation

Applications

Size / Dimension [x]

Size / Dimension [y]

Size / Dimension [z]

Size / Dimension [x]

Size / Dimension [y]

Voltage - Output 1

Efficiency

Voltage - Output 2

Mounting Type

Operating Temperature [Max]

Operating Temperature [Min]

Current - Output (Max)

Type

Package / Case

Current - Output (Max) [Max]

RECOM Power

R12P15D

SCP

10.8 V

13.2 V

6.4 kV

ITE (Commercial), Medical

0.77 in

0.39 "

12.5 mm

0.49 in

19.7 mm

9.8 mm

15 V

80 %

-15 V

Through Hole

90 °C

-40 °C

33 mA

Isolated Module

7-SIP Module, 5 Leads

RECOM Power

R12P15S/R8

10.8 V

13.2 V

8 kV

ITE (Commercial), Medical

0.77 in

0.39 "

12.5 mm

0.49 in

19.7 mm

9.8 mm

15 V

83 %

Through Hole

85 °C

-40 °C

Isolated Module

7-SIP Module, 4 Leads

66 mA

RECOM Power

R12P15S/P/X2/R6.4

SCP

10.8 V

13.2 V

6.4 kV

ITE (Commercial), Medical

15 V

83 %

Through Hole

85 °C

-40 °C

Isolated Module

7-SIP Module, 4 Leads

66 mA

RECOM Power

R12P15S/X2/R6.4

10.8 V

13.2 V

6.4 kV

ITE (Commercial), Medical

0.77 in

0.39 "

12.5 mm

0.49 in

19.7 mm

9.8 mm

15 V

83 %

Through Hole

85 °C

-40 °C

Isolated Module

7-SIP Module, 4 Leads

66 mA

RECOM Power

R12P15S

SCP

10.8 V

13.2 V

6.4 kV

ITE (Commercial), Medical

0.77 in

0.39 "

12.5 mm

0.49 in

19.7 mm

9.8 mm

15 V

80 %

Through Hole

90 °C

-40 °C

Isolated Module

7-SIP Module, 4 Leads

66 mA

RECOM Power

R12P15S/P/X2/R8

SCP

10.8 V

13.2 V

8 kV

ITE (Commercial), Medical

15 V

83 %

Through Hole

85 °C

-40 °C

Isolated Module

7-SIP Module, 4 Leads

66 mA

RECOM Power

R12P1509D

SCP

10.8 V

13.2 V

6.4 kV

ITE (Commercial), Medical

15 V

80 %

-9 V

Through Hole

90 °C

-40 °C

33 mA, 55 mA

Isolated Module

7-SIP Module, 5 Leads

RECOM Power

R12P15S/P/X2

SCP

10.8 V

13.2 V

6.4 kV

ITE (Commercial), Medical

15 V

80 %

Through Hole

90 °C

-40 °C

Isolated Module

7-SIP Module, 4 Leads

66 mA

RECOM Power

R12P15D/P/R8

SCP

10.8 V

13.2 V

8 kV

ITE (Commercial), Medical

0.77 in

0.39 "

12.5 mm

0.49 in

19.7 mm

9.8 mm

15 V

83 %

-15 V

Through Hole

85 °C

-40 °C

33 mA

Isolated Module

7-SIP Module, 5 Leads

RECOM Power

R12P15S/R6.4

10.8 V

13.2 V

6.4 kV

ITE (Commercial), Medical

0.77 in

0.39 "

12.5 mm

0.49 in

19.7 mm

9.8 mm

15 V

83 %

Through Hole

85 °C

-40 °C

Isolated Module

7-SIP Module, 4 Leads

66 mA

Part	Number of Outputs	Features	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Isolation	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 1	Efficiency	Voltage - Output 2	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)	Type	Package / Case	Current - Output (Max) [Max]
RECOM Power R12P15D	2	SCP	10.8 V	13.2 V	6.4 kV	ITE (Commercial), Medical	0.77 in	0.39 "	12.5 mm	0.49 in	19.7 mm	9.8 mm	15 V	80 %	-15 V	Through Hole	90 °C	-40 °C	33 mA	Isolated Module	7-SIP Module, 5 Leads
RECOM Power R12P15S/R8	1		10.8 V	13.2 V	8 kV	ITE (Commercial), Medical	0.77 in	0.39 "	12.5 mm	0.49 in	19.7 mm	9.8 mm	15 V	83 %		Through Hole	85 °C	-40 °C		Isolated Module	7-SIP Module, 4 Leads	66 mA
RECOM Power R12P15S/P/X2/R6.4	1	SCP	10.8 V	13.2 V	6.4 kV	ITE (Commercial), Medical							15 V	83 %		Through Hole	85 °C	-40 °C		Isolated Module	7-SIP Module, 4 Leads	66 mA
RECOM Power R12P15S/X2/R6.4	1		10.8 V	13.2 V	6.4 kV	ITE (Commercial), Medical	0.77 in	0.39 "	12.5 mm	0.49 in	19.7 mm	9.8 mm	15 V	83 %		Through Hole	85 °C	-40 °C		Isolated Module	7-SIP Module, 4 Leads	66 mA
RECOM Power R12P15S	1	SCP	10.8 V	13.2 V	6.4 kV	ITE (Commercial), Medical	0.77 in	0.39 "	12.5 mm	0.49 in	19.7 mm	9.8 mm	15 V	80 %		Through Hole	90 °C	-40 °C		Isolated Module	7-SIP Module, 4 Leads	66 mA
RECOM Power R12P15S/P/X2/R8	1	SCP	10.8 V	13.2 V	8 kV	ITE (Commercial), Medical							15 V	83 %		Through Hole	85 °C	-40 °C		Isolated Module	7-SIP Module, 4 Leads	66 mA
RECOM Power R12P1509D	2	SCP	10.8 V	13.2 V	6.4 kV	ITE (Commercial), Medical							15 V	80 %	-9 V	Through Hole	90 °C	-40 °C	33 mA, 55 mA	Isolated Module	7-SIP Module, 5 Leads
RECOM Power R12P15S/P/X2	1	SCP	10.8 V	13.2 V	6.4 kV	ITE (Commercial), Medical							15 V	80 %		Through Hole	90 °C	-40 °C		Isolated Module	7-SIP Module, 4 Leads	66 mA
RECOM Power R12P15D/P/R8	2	SCP	10.8 V	13.2 V	8 kV	ITE (Commercial), Medical	0.77 in	0.39 "	12.5 mm	0.49 in	19.7 mm	9.8 mm	15 V	83 %	-15 V	Through Hole	85 °C	-40 °C	33 mA	Isolated Module	7-SIP Module, 5 Leads
RECOM Power R12P15S/R6.4	1		10.8 V	13.2 V	6.4 kV	ITE (Commercial), Medical	0.77 in	0.39 "	12.5 mm	0.49 in	19.7 mm	9.8 mm	15 V	83 %		Through Hole	85 °C	-40 °C		Isolated Module	7-SIP Module, 4 Leads	66 mA
