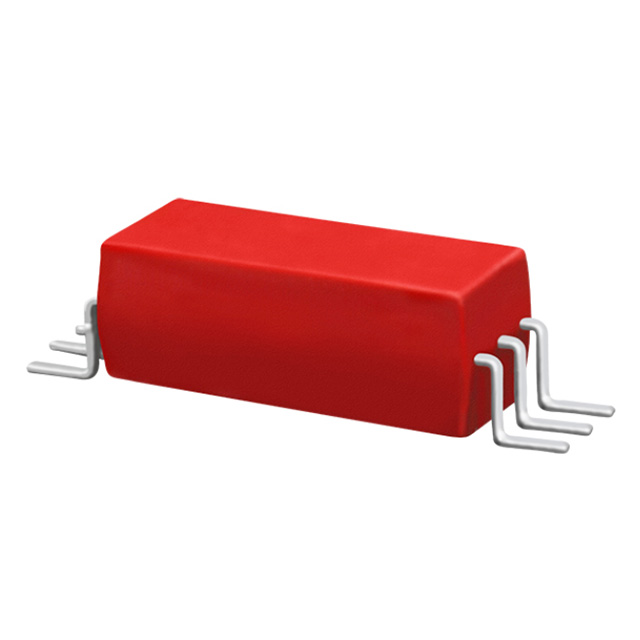

9402-12-00TR
ActiveCoto Technology
RELAY RF SPST-NO 500MA 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
9402-12-00TR
ActiveCoto Technology
RELAY RF SPST-NO 500MA 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 9402-12-00TR |
|---|---|
| Coil Current | 14.5 mA |
| Coil Resistance | 825 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 0.5 A |
| Mounting Type | Surface Mount |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1 VDC |
| Operate Time | 0.4 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Release Time | 0.2 ms |
| Switching Voltage | 200 VDC, 200 VAC |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 11.56 | |
| 10 | $ 10.84 | |||
| 25 | $ 9.64 | |||
| 50 | $ 9.15 | |||
| 100 | $ 8.67 | |||
| 250 | $ 7.71 | |||
| 500 | $ 7.23 | |||
| Digi-Reel® | 1 | $ 11.56 | ||
| 10 | $ 10.84 | |||
| 25 | $ 9.64 | |||
| 50 | $ 9.15 | |||
| 100 | $ 8.67 | |||
| 250 | $ 7.71 | |||
| 500 | $ 7.23 | |||
| Tape & Reel (TR) | 1000 | $ 6.74 | ||
Description
General part information
9402-12-00TR
RELAY RF SPST-NO 500MA 12V
Documents
Technical documentation and resources
