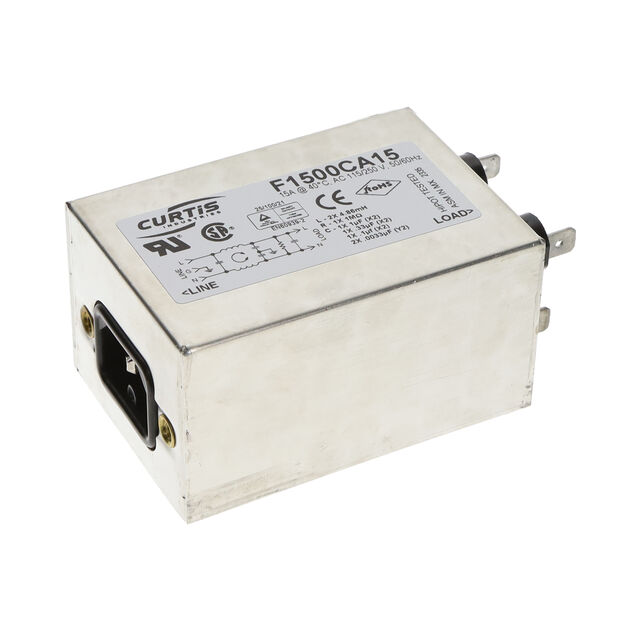

F1500CA15

Active

Curtis Industries

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

Curtis Industries

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	F1500CA15	F1500C Series

Accomodates a Fuse	False	False
Approval Agency	CSA, CE, UL, TUV	CSA, CE, UL, TUV
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Male Blades, Receptacle	Male Blades, Receptacle
Current Rating - Appliance Inlet	15 A	15 A
Current Rating - Filter	15 A	15 A
Filter Type	Filtered (EMI, RFI) - Commercial	Filtered (EMI, RFI) - Commercial
Mounting Type	Panel Mount, Screw Hole	Panel Mount, Screw Hole
Panel Cutout Dimensions [x]	30.5 mm	30.5 mm
Panel Cutout Dimensions [y]	22.9 mm	22.9 mm
Termination	0.25 in	0.25 in
Termination	6.3 mm	6.3 mm
Termination	Quick Connect	Quick Connect, Wire Leads
Voltage Rating - Appliance Inlet	250 VAC	250 VAC

PWR ENT RCPT IEC320-C14 PANEL QC

Part	Connector Type	Connector Style	Current Rating - Appliance Inlet	Accomodates a Fuse	Approval Agency	Current Rating - Filter	Termination	Termination	Termination	Voltage Rating - Appliance Inlet	Filter Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Mounting Type
Curtis Industries F1500CA15	Male Blades, Receptacle	IEC 320-C14	15 A		CE, CSA, TUV, UL	15 A	0.25 in	6.3 mm	Quick Connect	250 VAC	Filtered (EMI, RFI) - Commercial	22.9 mm	30.5 mm	Panel Mount, Screw Hole
Curtis Industries F1500CB15	Male Blades, Receptacle	IEC 320-C14	15 A		CE, CSA, TUV, UL	15 A			Wire Leads	250 VAC	Filtered (EMI, RFI) - Commercial			Panel Mount, Screw Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Screw Hole
