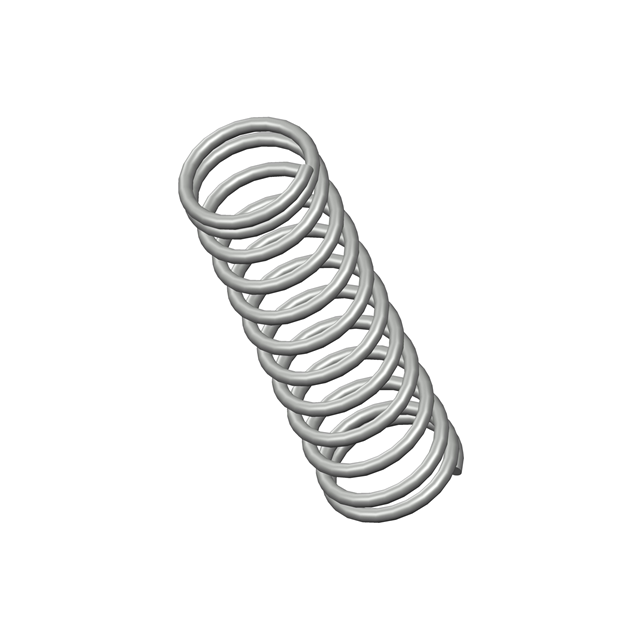

3272CS
ActiveCentury Spring Corp
COMP O=1.062,L= 3.63,W= .107
3272CS
ActiveCentury Spring Corp
COMP O=1.062,L= 3.63,W= .107
Description
General part information
3272CS
COMP O=1.062,L= 3.63,W= .107
Technical Specifications
Parameters and characteristics for this part
| Specification | 3272CS |
|---|---|
| Diameter - Inside | 0.848 in |
| Diameter - Outside | 1.062 in |
| End Style | Ground, Closed |
| Finish | Zinc |
| Free Length | 3.63 in |
| Material | Spring Steel |
| Rate (lbs/in) | 22 lbs/in |
| Type | Compression |
| Wire Diameter | 0.107 in |
