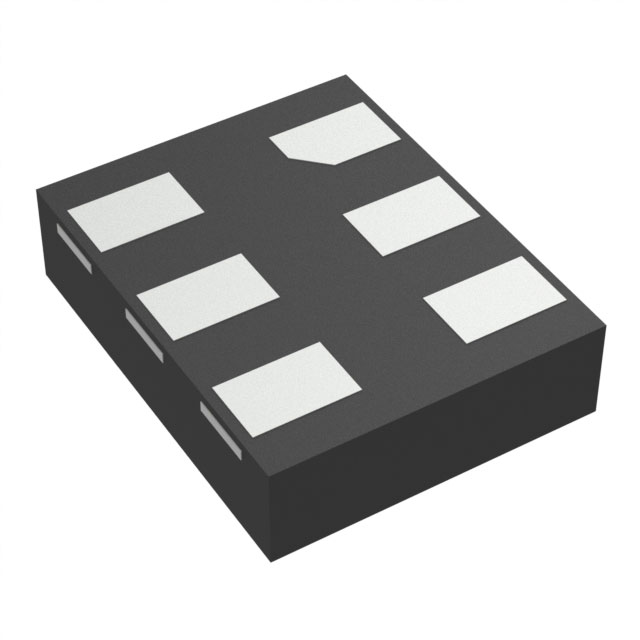

500DCAA-ACF

Obsolete

Skyworks Solutions Inc.

XTAL OSC PROG XO LVDS 3.3V 10PPM

Search across all available documentation for this part.

Obsolete

Skyworks Solutions Inc.

XTAL OSC PROG XO LVDS 3.3V 10PPM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

XO (Standard) LVDS 900 kHz ~ 200 MHz Programmable Oscillator 3.3V Enable/Disable 6-SMD, No Lead

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	500DCAA-ACF	500DCA Series

Available Frequency Range [Max]	200 MHz	200 MHz
Available Frequency Range [Min]	900 kHz	900 kHz
Base Resonator	Silicon	Crystal, Silicon
Current - Supply (Disable) (Max) [Max]	10.7 mA	10.7 mA
Current - Supply (Max) [Max]	16.5 mA	16.5 mA
Frequency	-	50 - 200 MHz
Frequency Stability	10 ppm	10 ppm
Frequency Stability (Total)	150 ppm	150 ppm
Function	Enable/Disable	Enable/Disable
Height - Seated (Max) [Max] [z]	0.035 "	0.035 "
Height - Seated (Max) [Max] [z]	0.9 mm	0.9 mm
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Output	LVDS	LVDS
Package / Case	6-SMD, No Lead	6-SMD, No Lead
Size / Dimension [x]	0.157 "	0.157 "
Size / Dimension [x]	4 mm	4 mm
Size / Dimension [y]	3.2 mm	3.2 mm
Size / Dimension [y]	0.126 "	0.126 "
Type	XO (Standard)	XO (Standard)
Voltage - Supply	3.3 V	3.3 V

XTAL OSC XO 125.0000MHZ LVDS SMD

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Output	Operating Temperature [Max]	Function	Voltage - Supply	Package / Case	Mounting Type	Current - Supply (Max) [Max]	Base Resonator	Frequency Stability	Frequency	Current - Supply (Disable) (Max) [Max]	Type	Available Frequency Range [Max]	Available Frequency Range [Min]	Frequency Stability (Total)
Skyworks Solutions Inc. 500DCAA125M000ACFR	3.2 mm	0.157 "	0.126 "	4 mm	0.035 "	0.9 mm	LVDS	70 °C	Enable/Disable	3.3 V	6-SMD, No Lead	Surface Mount	16.5 mA	Crystal	10 ppm	125 MHz	10.7 mA	XO (Standard)
Skyworks Solutions Inc. 500DCAA200M000ACFR	3.2 mm	0.157 "	0.126 "	4 mm	0.035 "	0.9 mm	LVDS	70 °C	Enable/Disable	3.3 V	6-SMD, No Lead	Surface Mount	16.5 mA	Crystal	10 ppm	200 MHz	10.7 mA	XO (Standard)
Skyworks Solutions Inc. 500DCAA-ACF	3.2 mm	0.157 "	0.126 "	4 mm	0.035 "	0.9 mm	LVDS	70 °C	Enable/Disable	3.3 V	6-SMD, No Lead	Surface Mount	16.5 mA	Silicon	10 ppm		10.7 mA	XO (Standard)	200 MHz	900 kHz	150 ppm
Skyworks Solutions Inc. 500DCAB50M0000ACF	3.2 mm	0.157 "	0.126 "	4 mm	0.035 "	0.9 mm	LVDS	70 °C	Enable/Disable	3.3 V	6-SMD, No Lead	Surface Mount	16.5 mA	Crystal	10 ppm	50 MHz	10.7 mA	XO (Standard)
Skyworks Solutions Inc. 500DCAE-ACF	3.2 mm	0.157 "	0.126 "	4 mm	0.035 "	0.9 mm	LVDS	70 °C	Enable/Disable	3.3 V	6-SMD, No Lead	Surface Mount	16.5 mA	Silicon	10 ppm		10.7 mA	XO (Standard)	200 MHz	900 kHz	150 ppm
