SC4825
ActiveFairview Microwave

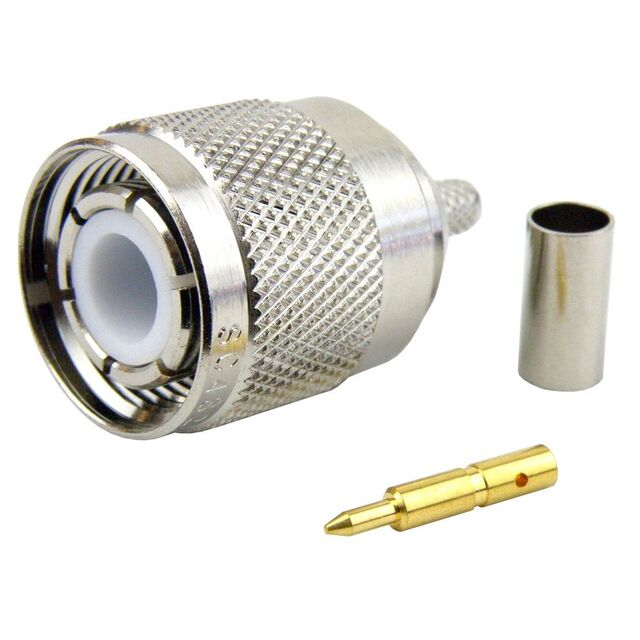

RF / COAXIAL CONNECTOR, HN COAXIAL, STRAIGHT PLUG, SOLDER, CRIMP, 50 OHM
SC4825
ActiveFairview Microwave
RF / COAXIAL CONNECTOR, HN COAXIAL, STRAIGHT PLUG, SOLDER, CRIMP, 50 OHM
Description
General part information
SC4825
HN Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | SC4825 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 400, 142, RG-55, 223 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | HN Type |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 10 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Crimp |
| Voltage Rating | 1500 V |
