PG0083.472NL
ActivePulse Electronics

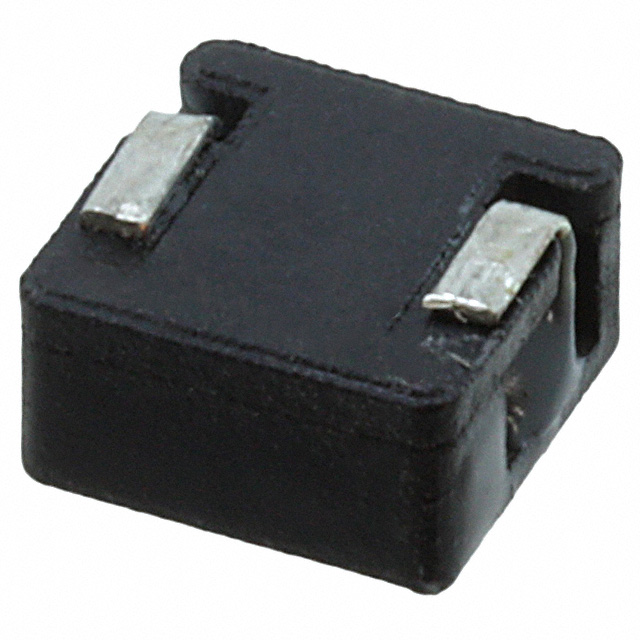

FIXED IND 4.7UH 4.5A 38 MOHM SMD
PG0083.472NL
ActivePulse Electronics
FIXED IND 4.7UH 4.5A 38 MOHM SMD
Description
General part information
PG0083.472NL
4.7 µH Unshielded Wirewound Inductor 4.5 A 38mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PG0083.472NL |
|---|---|
| Current - Saturation (Isat) | 8 A |
| Current Rating | 4.5 A |
| DC Resistance (DCR) (Max) | 38 mOhm |
| Height - Seated (Max) | 0.157 in |
| Inductance | 4.7 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 95 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.268 in |
| Size / Dimension Width | 0.268 in |
| Tolerance | 25 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
