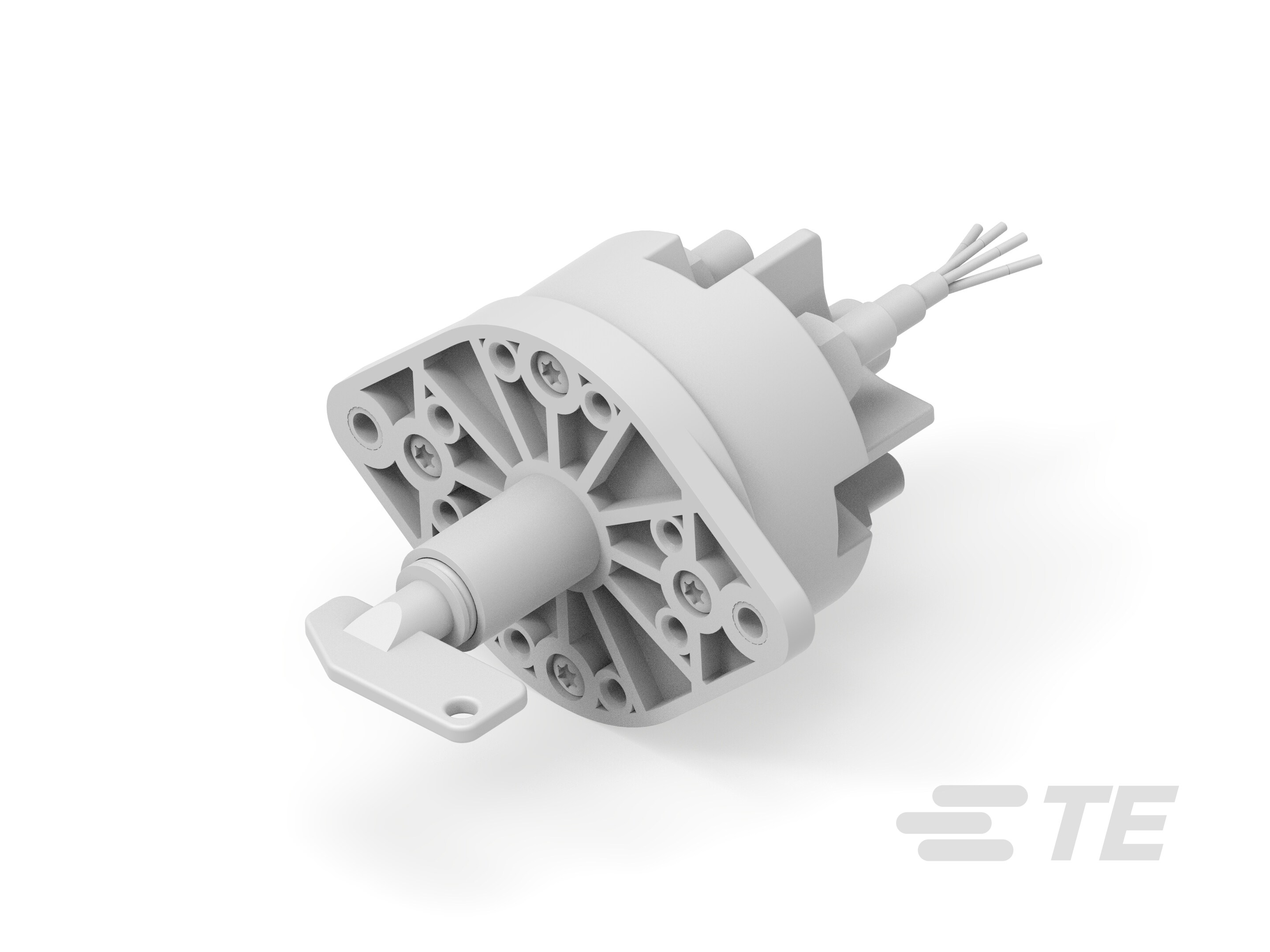

Specification	35-521-100-S-A2

Circuit	DPST-NO, SPDT
Current Rating	500 A
Depth Behind Flange	73 mm
Features	Long Lever
Illumination	Non-Illuminated
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Panel Mount
Number of Positions	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Switch Function	On-Off, On-On
Termination Style	Stud
Type	Battery Disconnect
Voltage Rating - DC	32 V

KISSLING Series 35 Series

...

Part	Depth Behind Flange	Features	Type	Illumination	Ingress Protection Description	Ingress Protection IP Rating	Current Rating	Mounting Type	Circuit	Voltage Rating - DC	Switch Function	Termination Style	Number of Positions	Operating Temperature (Min)	Operating Temperature (Max)	Accessory Type	For Use With/Related Products
TE Connectivity AMP Connectors 35-524-231-GE-900	75 mm	Long Lever	Battery Disconnect	Non-Illuminated	Dust Tight Waterproof	IP67	500 A	Panel Mount	DPST-NO	32 V	Off-On	Stud	2	-40 °C	85 °C
TE Connectivity AMP Connectors 35-524-231-R-A2-904	75 mm	Long Lever	Battery Disconnect	Non-Illuminated	Dust Tight Waterproof	IP67	500 A	Panel Mount	DPST-NO SPDT	32 V	On-Off On-On	Stud	2	-40 °C	85 °C
TE Connectivity AMP Connectors 35-413-141-R	66.5 mm	Long Lever	Battery Disconnect	Non-Illuminated	Dust Tight Waterproof	IP67	400 A	Panel Mount	SPST-NO	32 V	Off-On	Stud	2	-40 °C	85 °C
TE Connectivity AMP Connectors 35-521-140-R	72.5 mm	Long Lever	Battery Disconnect	Non-Illuminated	Dust Tight Waterproof	IP67	500 A	Panel Mount	DPST-NO	32 V	Off-On	Stud	2	-40 °C	85 °C
TE Connectivity AMP Connectors 35-221-101-R	62 mm	Long Lever	Battery Disconnect	Non-Illuminated	Dust Tight Waterproof	IP67	200 A	Panel Mount	DPST-NO	32 V	Off-On	Stud	2	-40 °C	85 °C
TE Connectivity AMP Connectors 35-213-151-R-900	48.9 mm	Long Lever	Battery Disconnect	Non-Illuminated	Dust Tight Waterproof	IP67	200 A	Panel Mount	SPST-NO	32 V	Off-On	Stud	2	-40 °C	85 °C
TE Connectivity AMP Connectors 35-221-190-R	62 mm	Long Lever	Battery Disconnect	Non-Illuminated	Dust Tight Waterproof	IP67	200 A	Panel Mount	DPST-NO	32 V	Off-On	Stud	2	-40 °C	85 °C
TE Connectivity AMP Connectors 35-524-100-R	73 mm	Long Lever	Battery Disconnect	Non-Illuminated	Dust Tight Waterproof	IP67	500 A	Panel Mount	DPST-NO	32 V	Off-On	Stud	2	-40 °C	85 °C
TE Connectivity AMP Connectors 35-555	75 mm	Long Lever	Battery Disconnect	Non-Illuminated	Dust Tight Waterproof	IP67	500 A	Panel Mount	DPST-NO	32 V	Off-On	Stud	2	-40 °C	85 °C
TE Connectivity AMP Connectors 35-200-029 FERT																Operation Key	35 Series
