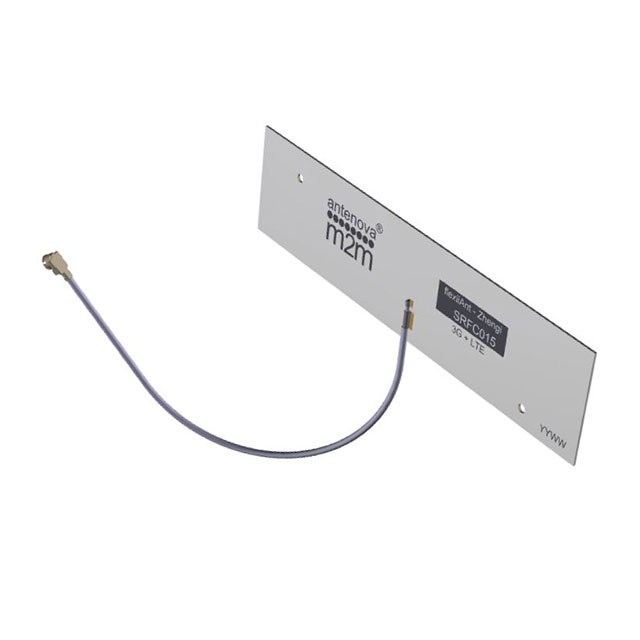

SRFC015-100

Active

Antenova

RF ANT 892MHZ/1.85GHZ FLAT CAB

Search across all available documentation for this part.

Active

Antenova

RF ANT 892MHZ/1.85GHZ FLAT CAB

Technical Specifications

Parameters and characteristics commom to parts in this series

RF ANT 892MHZ/1.85GHZ FLAT CAB

Part	Frequency Group	Antenna Type	Termination	Gain	VSWR	Return Loss	Features	Features	Mounting Type	Height (Max)	Height (Max) [Max]	Frequency (Center/Band)	Frequency Range [Max]	Frequency Range [Min]	RF Family/Standard	Number of Bands [custom]
Antenova SRFC015-100	Wide Band	Flat Patch	IPEX MHF1, U.FL (UMCC)	3.5 dBi	2.1	-8 dB	Cable	100 mm	Adhesive	0.15 mm	0.006 in	1.85 GHz, 2.14 GHz, 2.35 GHz, 2.6 GHz, 892 MHz	1.99 GHz, 2.17 GHz, 2.4 GHz, 2.69 GHz, 960 MHz	1.71 GHz, 2.11 GHz, 2.3 GHz, 2.5 GHz, 824 MHz	Cellular	5
Antenova SRFC015-150	Wide Band	Flat Patch	I-PEX MHF1, IPEX MHF1, U.FL (UMCC)	3.5 dBi	2.1	-8 dB	Cable - 150mm		Adhesive	0.15 mm	0.006 in	1.85 GHz, 2.14 GHz, 2.35 GHz, 2.6 GHz, 892 MHz	1.99 GHz, 2.17 GHz, 2.4 GHz, 2.69 GHz, 960 MHz	1.71 GHz, 2.11 GHz, 2.3 GHz, 2.5 GHz, 824 MHz	Cellular	5
Antenova SRFC015-200	Wide Band	Flat Patch	IPEX MHF1, U.FL (UMCC)	3.5 dBi	2.1	-8 dB	Cable	200 mm	Adhesive	0.15 mm	0.006 in	1.85 GHz, 2.14 GHz, 2.35 GHz, 2.6 GHz, 892 MHz	1.99 GHz, 2.17 GHz, 2.4 GHz, 2.69 GHz, 960 MHz	1.71 GHz, 2.11 GHz, 2.3 GHz, 2.5 GHz, 824 MHz	Cellular	5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA GSM, LTE, W-CDMA Flat Patch U.FL (UMCC), IPEX MHF1 Adhesive
