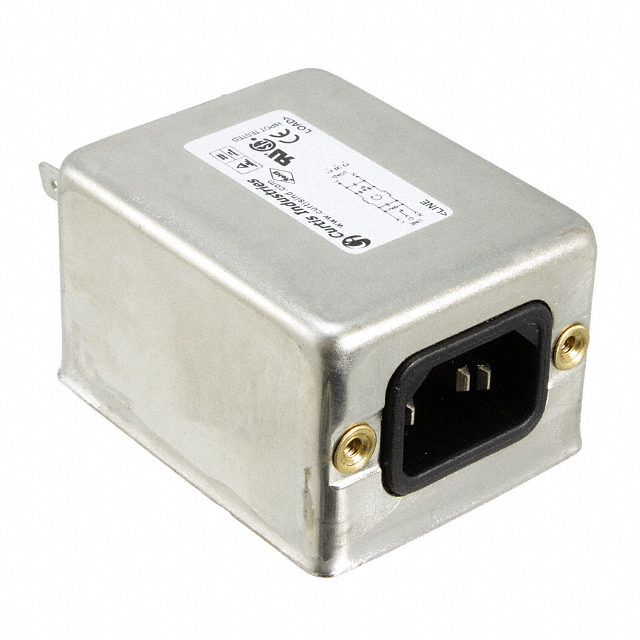

F1200CA10

Active

Curtis Industries

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

Curtis Industries

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	F1200CA10	F1200C Series

Accomodates a Fuse	False	False
Approval Agency	CSA, CE, UL, TUV	CSA, CE, UL, TUV
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Male Blades, Receptacle	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A	3 - 10 A
Current Rating - Filter	10 A	3 - 10 A
Filter Type	Filtered (EMI, RFI) - Commercial	Filtered (EMI, RFI) - Commercial
Mounting Type	Panel Mount, Screw Hole	Panel Mount, Screw Hole
Panel Cutout Dimensions [x]	30.5 mm	30.5 mm
Panel Cutout Dimensions [y]	22.9 mm	22.9 mm
Termination	0.25 in	0.25 in
Termination	6.3 mm	6.3 mm
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC	250 VAC

PWR ENT RCPT IEC320-C14 PANEL QC

Part	Filter Type	Connector Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Mounting Type	Current Rating - Appliance Inlet	Approval Agency	Termination	Termination	Termination	Current Rating - Filter	Voltage Rating - Appliance Inlet	Connector Style	Accomodates a Fuse
Curtis Industries F1200CA10	Filtered (EMI, RFI) - Commercial	Male Blades, Receptacle	22.9 mm	30.5 mm	Panel Mount, Screw Hole	10 A	CE, CSA, TUV, UL	0.25 in	6.3 mm	Quick Connect	10 A	250 VAC	IEC 320-C14
Curtis Industries F1200CA03	Filtered (EMI, RFI) - Commercial	Male Blades, Receptacle	22.9 mm	30.5 mm	Panel Mount, Screw Hole	3 A	CE, CSA, TUV, UL	0.25 in	6.3 mm	Quick Connect	3 A	250 VAC	IEC 320-C14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 22.01

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Screw Hole

Technical documentation and resources
