TA3MBX

Active

Switchcraft Inc.

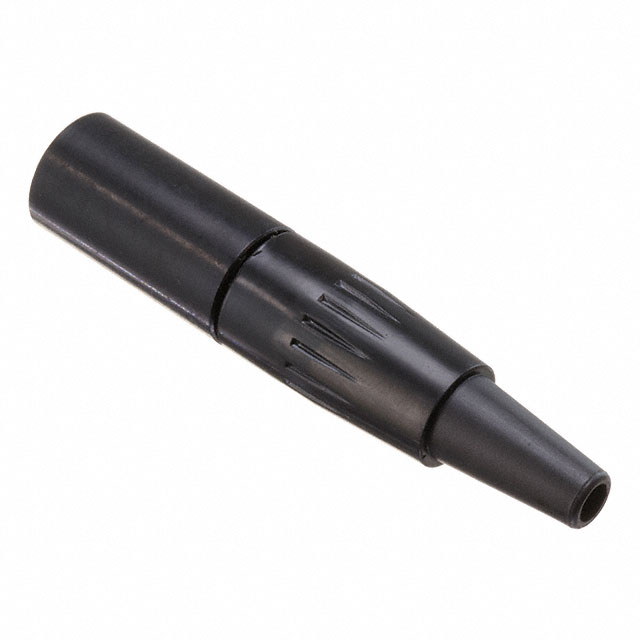

CONN RCPT MALE MINI XLR 3P SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE MINI XLR 3P SLDR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

XLR Connectors 5P PLUG MALE

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	TA3MBX	TA Series

Applications	Audio	Audio
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	0.115 - 4.83 mm
Cable Opening [Max] [custom]	0.155 in	0.155 in
Cable Opening [Max] [custom]	3.94 mm	3.94 mm
Cable Opening [Min] [custom]	0.065 in	0.065 in
Cable Opening [Min] [custom]	1.65 mm	1.65 mm
Color	Black	Black, Silver
Connector Type	Receptacle, Male Pins	Female Sockets, Plug, Receptacle, Male Pins
Contact Finish - Mating	Silver	Silver
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	5 A	4 - 5 A
Fastening Type	Latch Lock	Latch Lock
Features	Backshell, Strain Relief, Cable Clamp	Cable Clamp, Backshell, Strain Relief
Insert Material	Polyphenylene Sulfide (PPS)	Thermoplastic, Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Nickel, Chrome
Shell Material	Copper Alloy	Copper Alloy
Shell Size - Insert	Mini XLR	Mini XLR
Shielding	Shielded	Shielded
Termination	Solder	Solder
Voltage Rating	125 VAC	125 VAC

XLR Connectors 5P PLUG MALE

Part	Connector Type	Shell Material	Contact Finish - Mating	Fastening Type	Current Rating (Amps)	Backshell Material, Plating	Termination	Color	Shielding	Mounting Type	Contact Material	Applications	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Shell Finish	Cable Opening [custom]	Shell Size - Insert	Orientation	Primary Material	Features	Insert Material	Material Flammability Rating	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Switchcraft Inc. TA5FLX	Female Sockets, Plug	Copper Alloy	Silver	Latch Lock	4 A	Thermoplastic	Solder	Black, Silver	Shielded	Free Hanging (In-Line)	Copper Alloy	Audio	125 VAC	85 °C	-55 °C	Nickel	0.115 in, 0.19 in, 2.92 mm, 4.83 mm	Mini XLR	Keyed	Metal	Backshell, Cable Clamp	Thermoplastic
Switchcraft Inc. TA5MX	Male Pins, Receptacle	Copper Alloy	Silver	Latch Lock	4 A	Thermoplastic	Solder	Black, Silver	Shielded	Free Hanging (In-Line)	Copper Alloy	Audio	125 VAC	85 °C	-55 °C	Nickel		Mini XLR	Keyed	Metal	Backshell, Cable Clamp, Strain Relief	Polyphenylene Sulfide (PPS)	UL94 V-0	0.065 in	1.65 mm	0.155 in	3.94 mm
Switchcraft Inc. TA3MBX	Male Pins, Receptacle	Copper Alloy	Silver	Latch Lock	5 A	Thermoplastic	Solder	Black	Shielded	Free Hanging (In-Line)	Copper Alloy	Audio	125 VAC	85 °C	-55 °C	Chrome		Mini XLR	Keyed	Metal	Backshell, Cable Clamp, Strain Relief	Polyphenylene Sulfide (PPS)	UL94 V-0	0.065 in	1.65 mm	0.155 in	3.94 mm
