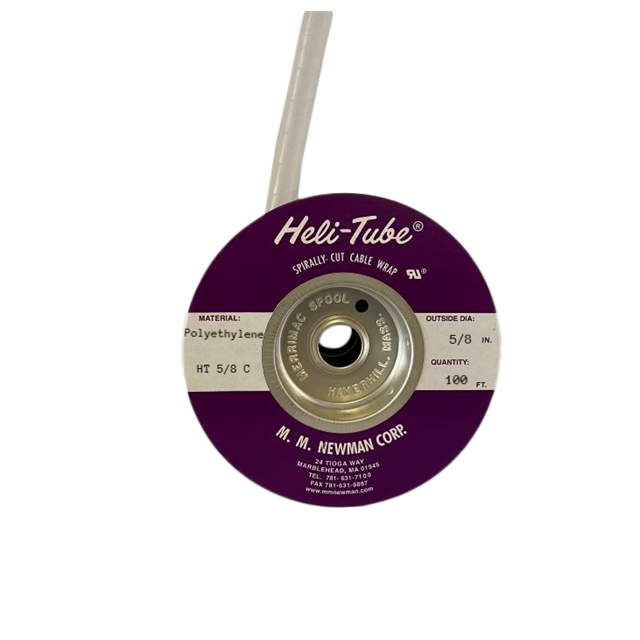

HT 5/8 C

Active

MM Newman Corporation

SPIRAL WRAP 1/2" X 100' NATURAL

Search across all available documentation for this part.

Active

MM Newman Corporation

SPIRAL WRAP 1/2" X 100' NATURAL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HT 5/8 C	HT 5/8 Series

Abrasion Protection	Abrasion Resistant	Abrasion Resistant
Color	Natural	Natural, White, Black
Diameter - Inside, Expanded [diameter]	4.5 "	4.5 "
Diameter - Inside, Expanded [diameter]	114.3 mm	114.3 mm
Diameter - Inside, Non-Expanded [diameter]	0.5 in	0.5 - 0.561 in
Diameter - Inside, Non-Expanded [diameter]	12.7 mm	12.7 - 14.25 mm
Diameter - Outside, Non-Expanded [diameter]	15.88 mm	15.88 mm
Diameter - Outside, Non-Expanded [diameter]	0.625 in	0.625 in
Environment Protection	-	UV Resistant
Features	Solvent Resistant, Chemical Resistant	Solvent Resistant, Chemical Resistant, Self Extinguishing
Heat Protection	-	Fire Resistant
Length	100 ft	100 ft
Length	30.48 m	30.48 m
Material	Polyethylene (PE)	Polyethylene (PE), Nylon
Material Flammability Rating	-	UL94 V-2, UL1441
Operating Temperature [Max]	88 °C	80 - 121 °C
Operating Temperature [Min]	-60 °C	-60 - -20 °C
Type	Spiral Wrap	Spiral Wrap
Type Attributes	Harness	Harness
Wall Thickness	1.57 mm	0.81 - 1.57 mm
Wall Thickness	0.062 in	0.032 - 0.062 in

SPIRAL WRAP 1/2" X 100' NATURAL

Part	Length	Length	Material	Abrasion Protection	Wall Thickness	Wall Thickness	Features	Color	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Type	Type Attributes	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Material Flammability Rating	Heat Protection	Environment Protection
MM Newman Corporation HT 5/8 C	100 ft	30.48 m	Polyethylene (PE)	Abrasion Resistant	1.57 mm	0.062 in	Chemical Resistant, Solvent Resistant	Natural	15.88 mm	0.625 in	-60 °C	88 °C	0.5 in	12.7 mm	Spiral Wrap	Harness	4.5 "	114.3 mm
MM Newman Corporation HT 5/8 R	100 ft	30.48 m	Polyethylene (PE)	Abrasion Resistant	1.57 mm	0.062 in	Chemical Resistant, Solvent Resistant	White	15.88 mm	0.625 in	-20 C	80 C	0.5 in	12.7 mm	Spiral Wrap	Harness	4.5 "	114.3 mm	UL94 V-2, UL1441	Fire Resistant
MM Newman Corporation HT 5/8 UR	100 ft	30.48 m	Polyethylene (PE)	Abrasion Resistant	1.57 mm	0.062 in	Chemical Resistant, Solvent Resistant	Black	15.88 mm	0.625 in	-60 °C	88 °C	0.5 in	12.7 mm	Spiral Wrap	Harness	4.5 "	114.3 mm
MM Newman Corporation HT 5/8 N-B	100 ft	30.48 m	Nylon	Abrasion Resistant	0.81 mm	0.032 in	Chemical Resistant, Self Extinguishing, Solvent Resistant	Black	15.88 mm	0.625 in	-40 °C	121 °C	0.561 in	14.25 mm	Spiral Wrap	Harness	4.5 "	114.3 mm			UV Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Spiral Wrap 0.625" (15.88mm) X 100' (30.48m) Natural
