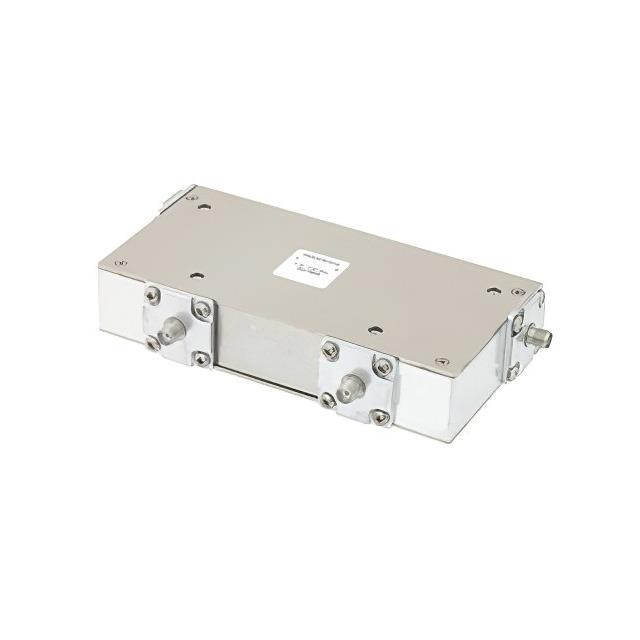

PE83CR1015
ActivePasternack
DUAL JUNCTION CIRCULATOR WITH 40
PE83CR1015
ActivePasternack
DUAL JUNCTION CIRCULATOR WITH 40
Description
General part information
PE83CR1015
DUAL JUNCTION CIRCULATOR WITH 40
Technical Specifications
Parameters and characteristics for this part
| Specification | PE83CR1015 |
|---|---|
| Connector Type | SMA-FEMALE |
| Frequency (Max) | 2.2 GHz |
| Frequency (Min) | 1.7 GHz |
| Insertion Loss (Max) | 0.8 dB |
| Isolation (Min) | 40 dB |
| Package / Case | Module, SMA Connectors |
| Package Name | Module |
| Power - Average Forward | 10 W |
| Type | Circulator |
| VSWR | 1.25 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
