Description
General part information

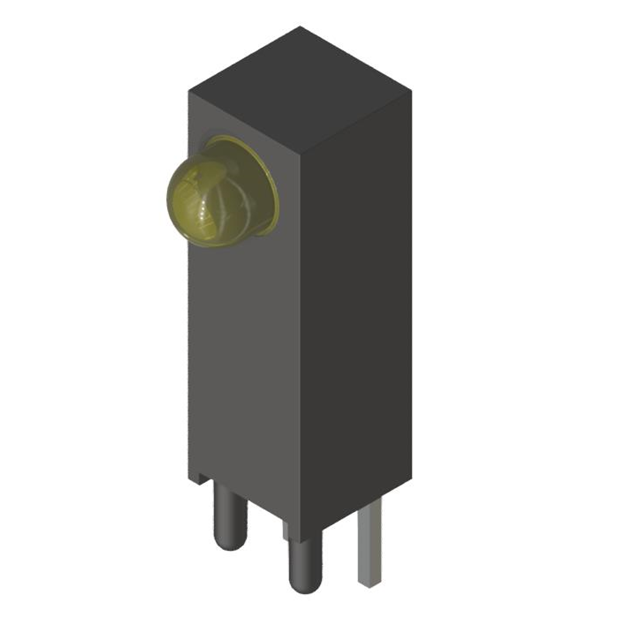

PL303-1Y01
LED Circuit Board Indicator LED Circuit Board Indicator Single Yellow Diffused, Tinted 2.1V 20mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | PL303-1Y01 |
|---|---|
| Color | Yellow |
| Configuration | Single |
| Current | 20 mA |
| Lens Size | 3 mm |
| Lens Size (Code) | T-1 |
| Lens Style | Round, Domed Top |
| Lens Type | Tinted, Diffused |
| Millicandela Rating | 20 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 55 ° |
| Voltage Rating | 2.1 V |
| Wavelength - Peak | 585 nm |
