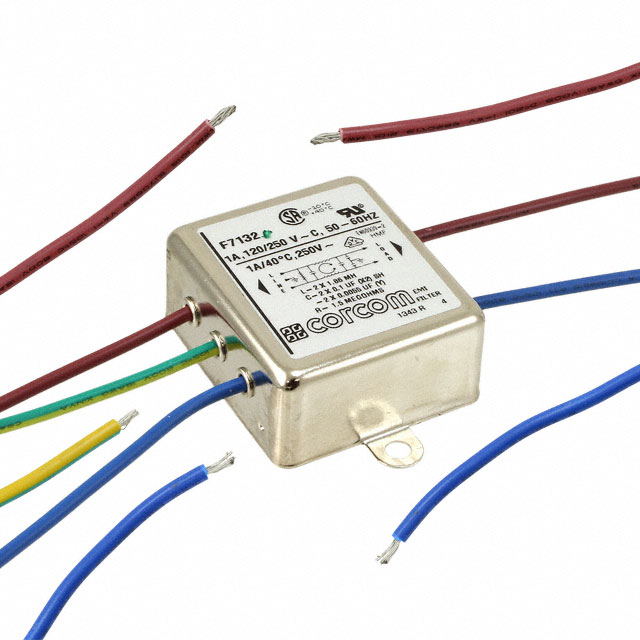

1VK3

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 250VAC 1A CHASSIS

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 250VAC 1A CHASSIS

Technical Specifications

Parameters and characteristics for this part

Part	Current	Termination Style	Voltage - Rated AC	Frequency - Operating [Max]	Frequency - Operating [Min]	Applications	Configuration	Approval Agency	Inductance	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Filter Type
TE Connectivity Raychem Cable Protection 1VR3	1 A	Wire Leads	250 V	60 Hz	50 Hz	General Purpose	Two Stage	CSA UR VDE	3.72 mH	-10 °C	40 °C	Chassis Mount	Single Phase
TE Connectivity Raychem Cable Protection 1VR1	1 A	Quick Connect	250 V	60 Hz	50 Hz	General Purpose	Two Stage	CSA UR VDE	3.72 mH	-10 °C	40 °C	Chassis Mount	Single Phase
TE Connectivity Raychem Cable Protection 1VK3	1 A	Wire Leads	250 V	60 Hz	50 Hz	General Purpose	Single Stage	CSA UR VDE		-10 °C	40 °C	Chassis Mount	Single Phase

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	72	$ 16.84
