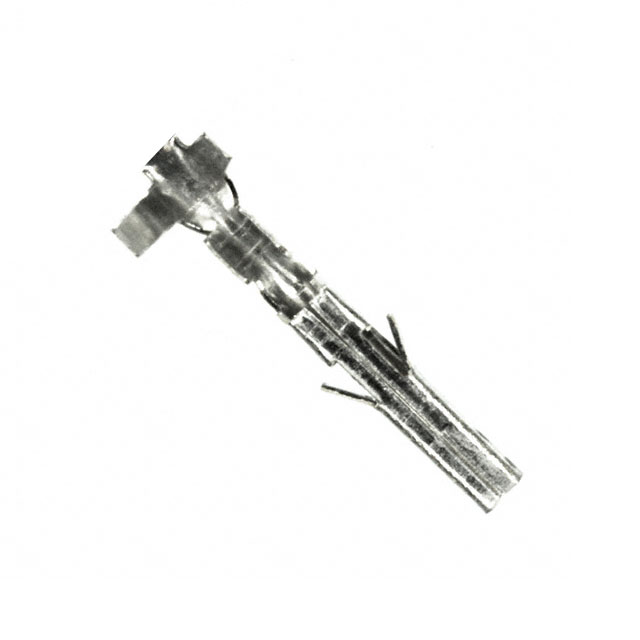

794956-1
ActiveTE Connectivity AMP Connectors
CONN SOCKET 18-22AWG CRIMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
794956-1
ActiveTE Connectivity AMP Connectors
CONN SOCKET 18-22AWG CRIMP TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 794956-1 | 794956 Series |
|---|---|---|
| Contact Finish | Tin | Tin, Gold |
| Contact Finish Thickness | - | 0.76 - 2.54 µm |
| Contact Finish Thickness | - | 30 - 100 µin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Type | Stamped | Stamped |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG | 17.5 AWG |
794956 Series
CONN SOCKET 18-22AWG CRIMP TIN
| Part | Contact Finish | Wire Gauge [Max] | Wire Gauge [Min] | Contact Termination | Type | Contact Finish Thickness | Contact Finish Thickness | Pin or Socket |
|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 794956-5 | Tin | 22 AWG | 17.5 AWG | Crimp | Stamped | 2.54 µm | 100 µin | Socket |
TE Connectivity AMP Connectors 794956-3 | Tin | 22 AWG | 17.5 AWG | Crimp | Stamped | Socket | ||
TE Connectivity AMP Connectors 794956-4 | Gold | 22 AWG | 17.5 AWG | Crimp | Stamped | 0.76 Ám | 30 Áin | Socket |
TE Connectivity AMP Connectors 794956-1 | Tin | 22 AWG | 17.5 AWG | Crimp | Stamped | Socket | ||
TE Connectivity AMP Connectors 794956-2 | Gold | 22 AWG | 17.5 AWG | Crimp | Stamped | 0.76 Ám | 30 Áin | Socket |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.04 | |||
| 25 | $ 0.04 | |||
| 50 | $ 0.04 | |||
| 100 | $ 0.03 | |||
| 250 | $ 0.03 | |||
| 500 | $ 0.03 | |||
| 1000 | $ 0.03 | |||
| Tape & Reel (TR) | 3500 | $ 0.03 | ||
| 7000 | $ 0.02 | |||
| 10500 | $ 0.02 | |||
| 35000 | $ 0.02 | |||
| 87500 | $ 0.02 | |||
Description
General part information
794956 Series
Socket Contact Tin 18-22 AWG Crimp Stamped
