1SS302A,LF

Active

Toshiba Semiconductor and Storage

DIODE ARRAY GP 80V 100MA SC70

Search across all available documentation for this part.

Active

Toshiba Semiconductor and Storage

DIODE ARRAY GP 80V 100MA SC70

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1SS302A,LF	1SS302 Series

Current - Average Rectified (Io) (per Diode)	100 mA	100 mA
Current - Reverse Leakage @ Vr	500 nA	500 nA
Diode Configuration	1 Pair Series Connection	1 Pair Series Connection
Mounting Type	Surface Mount	Surface Mount
Operating Temperature - Junction	-	125 °C
Operating Temperature - Junction [Max]	150 °C	150 °C
Operating Temperature - Junction [Min]	-55 °C	-55 °C

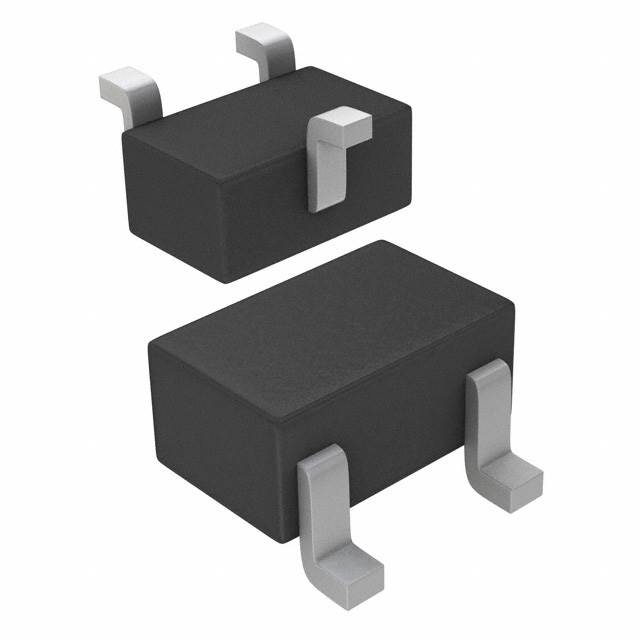

Package / Case	SC-70, SOT-323	SC-70, SOT-323
Reverse Recovery Time (trr)	4 ns	4 ns
Speed	Any Speed	Any Speed
Speed	200 mA	200 mA
Supplier Device Package	SC-70	SC-70
Technology	Standard	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	80 V	80 V

DIODE ARRAY GP 80V 100MA SC70

Part	Speed	Speed	Package / Case	Diode Configuration	Reverse Recovery Time (trr)	Current - Average Rectified (Io) (per Diode)	Operating Temperature - Junction	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Mounting Type	Current - Reverse Leakage @ Vr	Technology	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]
Toshiba Semiconductor and Storage 1SS302TE85LF	Any Speed	200 mA	SC-70, SOT-323	1 Pair Series Connection	4 ns	100 mA	125 °C	80 V	SC-70	Surface Mount	500 nA	Standard
Toshiba Semiconductor and Storage 1SS302A,LF	Any Speed	200 mA	SC-70, SOT-323	1 Pair Series Connection	4 ns	100 mA		80 V	SC-70	Surface Mount	500 nA	Standard	150 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 1 Pair Series Connection 80 V 100mA Surface Mount SC-70, SOT-323
