1422663
LTBPhoenix Contact

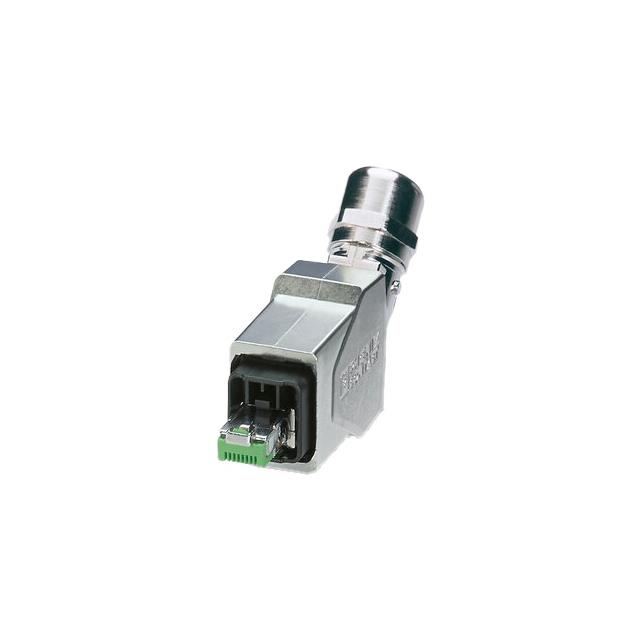

RJ45 CONN, PLUG, CAT5, 8P8C, IDC
1422663
LTBPhoenix Contact
RJ45 CONN, PLUG, CAT5, 8P8C, IDC
Description
General part information
1422663
Plug Modular Connector 8p8c (RJ45, Ethernet) Position Shielded Cat5 IDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 1422663 |
|---|---|
| Cable Type | Solid or Stranded Wires, Round Cable |
| Connector Type | Ethernet, RJ45, Plug |
| Current Rating | 1.75 A |
| Features | Angled |
| Housing Material | Zinc Die Cast |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP67, IP65 |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Ratings | Cat5 |
| Shielding | Shielded |
| Termination | IDC |
| Wire Gauge (AWG) (Max) | 26 AWG |
| Wire Gauge (AWG) (Min) | 24 AWG |
