8205MN 0081000

Active

Belden Inc.

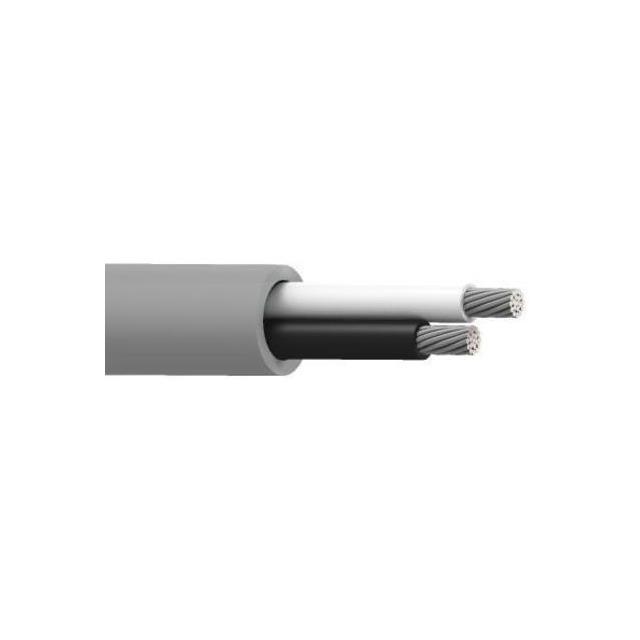

CABLE 2COND 20AWG GRAY

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 20AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	8205MN 0081000

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand	34 AWG, 26
Jacket (Insulation) Diameter [diameter]	0.146 in
Jacket (Insulation) Diameter [diameter]	3.71 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.406 mm
Jacket (Insulation) Thickness	0.016 in
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	20 AWG

Part	Number of Conductors	Wire Gauge	Jacket Color	Length [x]	Length [x]	Conductor Material	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Cable Type	Conductor Strand	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Voltage	Length	Length
Belden Inc. 8205MN 008100	2	20 AWG	Gray	30.5 m	100 ft	Copper Tinned	Audio Control Instrumentation	0.406 mm	0.016 in	Polypropylene (PP)	Multi-Conductor	26 34 AWG	-20 C	80 C	0.146 in	3.71 mm	Poly-Vinyl Chloride (PVC)
Belden Inc. 8205MN 0081000	2	20 AWG	Gray			Copper Tinned	Audio Control Instrumentation	0.406 mm	0.016 in	Polypropylene (PP)	Multi-Conductor	26 34 AWG	-20 C	80 C	0.146 in	3.71 mm	Poly-Vinyl Chloride (PVC)	300 V	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.88
LCSC	Piece	1	$ 0.77

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Gray 20 AWG 1000.0' (304.8m)
