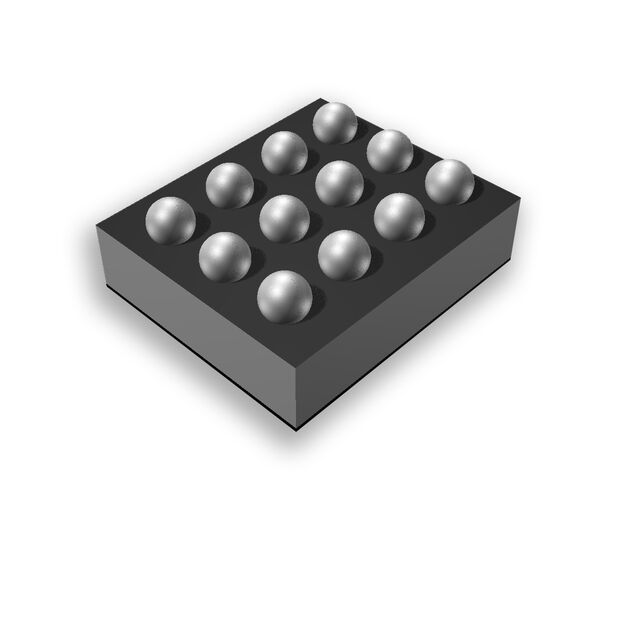

KTD2686EUD-TR
ActiveKinetic Technologies
THREE-CHANNEL FLASH LED DRIVER W
KTD2686EUD-TR
ActiveKinetic Technologies
THREE-CHANNEL FLASH LED DRIVER W
Description
General part information
KTD2686EUD-TR
LED Driver IC 3 Output DC DC Regulator Step-Up (Boost) I2C Dimming 500mA, 1A, 1.5A 12-WLCSP (1.42x1.66)
Technical Specifications
Parameters and characteristics for this part
| Specification | KTD2686EUD-TR |
|---|---|
| Applications | Camera Flash |
| Current - Output / Channel | 500 mA, 1.5 A, 1 A |
| Dimming | I2C |
| Frequency | 2MHz, 4MHz |
| Frequency | 2 MHz, 4 MHz |
| Mounting Type | Surface Mount |
| Number of Outputs | 3 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | WLCSP, 12-WFBGA |
| Package Length | 1.42 mm |
| Package Name | 12-WLCSP |
| Package Width | 1.66 mm |
| Topology | Step-Up (Boost) |
| Type | DC DC Regulator |
| Voltage - Supply (Max) | 5.5 V |
| Voltage - Supply (Min) | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
