1014423
ActivePhoenix Contact

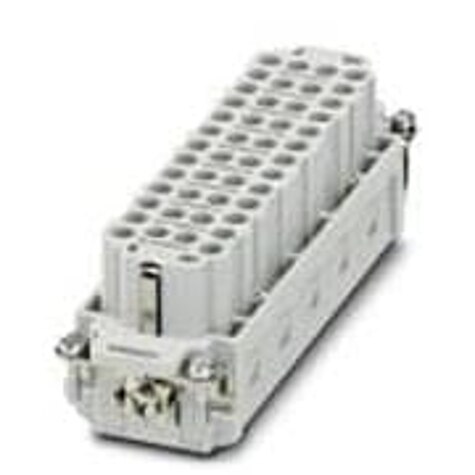

CONN INSERT FEMALE 46POS
1014423
ActivePhoenix Contact
CONN INSERT FEMALE 46POS
Description
General part information
1014423
Female Insert 46+Ground Position Push In
Technical Specifications
Parameters and characteristics for this part
| Specification | 1014423 |
|---|---|
| Connector Type | Insert |
| Contact Finish | Silver |
| Contact Material | Copper Alloy |
| Contact Type | Power |
| Current Rating | 16 A |
| Gender | Female |
| Housing Material | PC, Polycarbonate |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 46 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Position Types | Ground |
| Size | B24 |
| Termination Style | Push In |
| Voltage Rating | 500 V |
