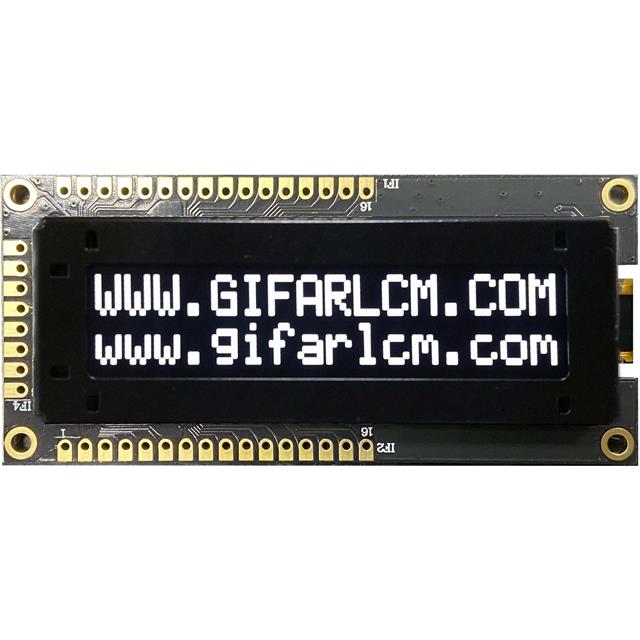

GFOC1602D-WG
ActiveGi Far technology Co., Ltd
OLEDWHITE + PCB+FRAME 80X36X9.1
GFOC1602D-WG
ActiveGi Far technology Co., Ltd
OLEDWHITE + PCB+FRAME 80X36X9.1
Description
General part information
GFOC1602D-WG
Character Display Module Passive 5 x 8 Dots OLED 80.00mm x 36.00mm x 9.10mm
Technical Specifications
Parameters and characteristics for this part
| Specification | GFOC1602D-WG |
|---|---|
| Background Color | Black |
| Character Height | 5.57 mm |
| Character Height (Dots) | 8 Dots |
| Character Width | 2.97 mm |
| Character Width (Dots) | 5 Dots |
| Controller Type | US2066 |
| Display Columns | 16 |
| Display Mode | Passive |
| Display Rows | 2 |
| Display Type | OLED |
| Dot Size Height | 0.66 mm |
| Dot Size Width | 0.56 mm |
| Number of Characters | 32 characters |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Outline Height | 9.1 mm |
| Outline Length | 80 mm |
| Outline Width | 36 mm |
| Text Color | White |
| Viewing Area Length | 58.22 mm |
| Viewing Area Width | 13.52 mm |
| Voltage - Supply (Maximum) | 5.3 V |
| Voltage - Supply (Minimum) | 2.8 V |
