Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1988011 | PT 2,5 Series |
|---|---|---|
| Color | Green | Green |
| Current | 20 A | 20 A |
| Features | Interlocking (Side) | Interlocking (Side) |
| Housing Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Mating Orientation | Vertical with Board | Vertical with Board |
| Mounting Type | Through Hole | Through Hole |
| Number of Levels | 1 | 1 |
| Pitch [x] | 0.295 in | 0.197 - 0.295 in |
| Pitch [x] | 7.5 mm | 5 - 7.5 mm |
| Positions Per Level | 8 | 8 - 12 |
| Screw Thread | M3 | M3 |
| Torque - Screw [Max] | 4.4 Lb-In | 4.4 Lb-In |
| Torque - Screw [Max] | 0.5 Nm | 0.5 Nm |
| Torque - Screw [Min] | 3.9 Lb-In | 3.9 Lb-In |
| Torque - Screw [Min] | 0.45 Nm | 0.45 Nm |
| Voltage | 300 V | 300 V |
| Wire Gauge [Max] | 20 AWG | 20 AWG |
| Wire Gauge [Min] | 12 AWG | 12 AWG |
| Wire Termination | Screw - Leaf Spring, Wire Guard | Screw, Screw - Leaf Spring, Wire Guard |
PT 2,5 Series

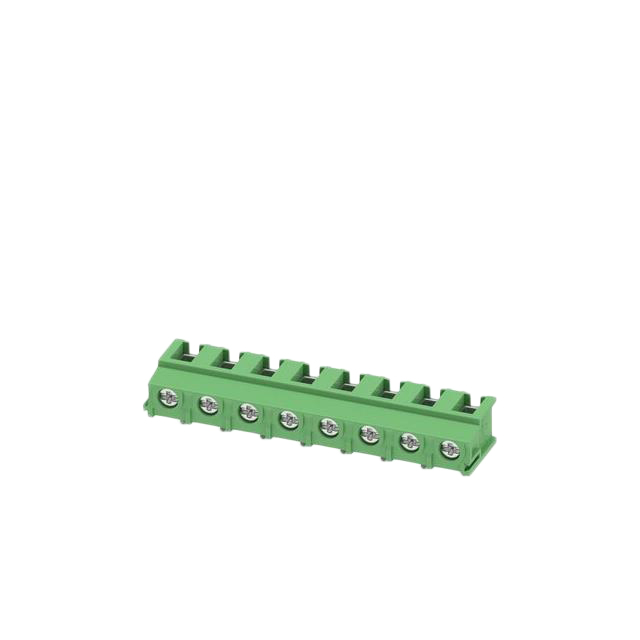

Fixed Terminal Blocks PT 2.5/ 8-7.5-V
| Part | Positions Per Level | Pitch [x] | Pitch [x] | Housing Material | Number of Levels | Mating Orientation | Color | Voltage | Wire Termination | Screw Thread | Features | Torque - Screw [Min] | Torque - Screw [Max] | Torque - Screw [Min] | Torque - Screw [Max] | Current | Mounting Type | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1987821 | 12 | 5 mm | 0.197 in | Polyamide (PA), Nylon | 1 | Vertical with Board | Green | 300 V | Screw | M3 | Interlocking (Side) | 3.9 Lb-In | 4.4 Lb-In | 0.45 Nm | 0.5 Nm | 20 A | Through Hole | 12 AWG | 20 AWG |
Phoenix Contact 1988011 | 8 | 7.5 mm | 0.295 in | Polyamide (PA), Nylon | 1 | Vertical with Board | Green | 300 V | Screw - Leaf Spring, Wire Guard | M3 | Interlocking (Side) | 3.9 Lb-In | 4.4 Lb-In | 0.45 Nm | 0.5 Nm | 20 A | Through Hole | 12 AWG | 20 AWG |
