1776388
ActivePhoenix Contact
TERM BLOCK HDR 3POS VERT 5.08MM
1776388
ActivePhoenix Contact
TERM BLOCK HDR 3POS VERT 5.08MM
Description
General part information
1776388

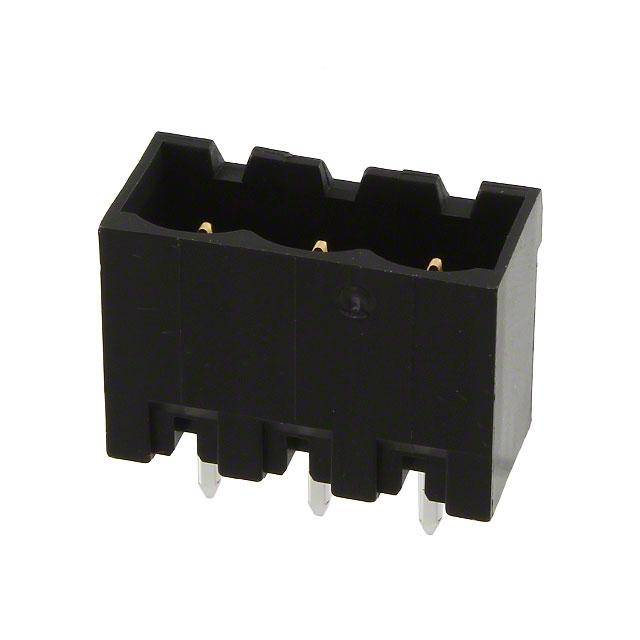

3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1776388 |
|---|---|
| Color | Black |
| Contact Mating Finish | Gold |
| Contact Tail Length | 0.154 in |
| Current - IEC | 12 A |
| Header Orientation | Vertical |
| Insulation Height | 0.472 in |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 3 |
| Pitch | 5.08 mm |
| Positions Per Level | 3 |
| Termination Style | Solder |
| Type | Shrouded (4 Side), Male Pins, Header |
| Voltage - IEC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
