S-13D1D1828-A6T2U3

Active

ABLIC Inc.

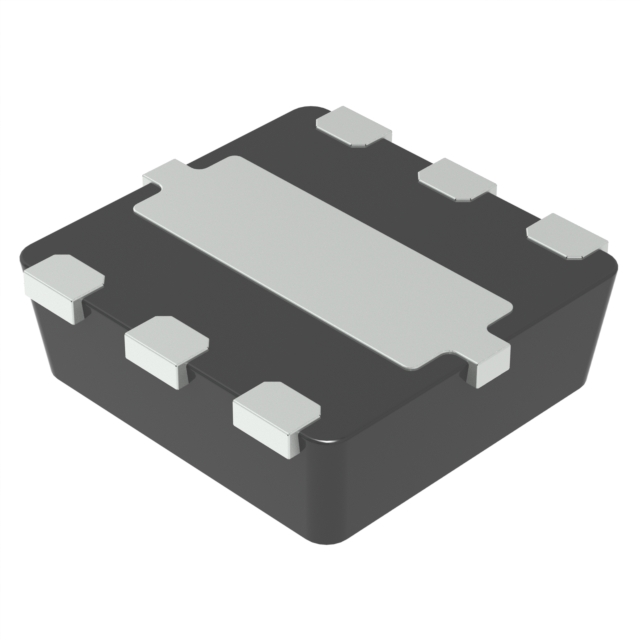

IC REG LIN 1.8/2.8V HSNT6-B

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S-13D1D1828-A6T2U3

Active

ABLIC Inc.

IC REG LIN 1.8/2.8V HSNT6-B

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S-13D1D1828-A6T2U3

Control Features	Enable
Current - Output	150 mA
Current - Quiescent (Iq)	58 µA
Current - Supply (Max) [Max]	116 µA
Mounting Type	Surface Mount
Number of Regulators	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	6-SMD, Flat Leads Exposed Pad
PSRR	75 dB, 72 dB
Supplier Device Package	HSNT-6-B
Voltage - Input (Max) [Max]	5.5 V
Voltage - Output (Min/Fixed)	1.8 V
Voltage - Output (Min/Fixed)	2.8 V
Voltage Dropout (Max)	0.19 V, 0.13 V

S-13D1 Series

Part	Control Features	Number of Regulators	PSRR	Current - Supply (Max) [Max]	Output Configuration	Supplier Device Package	Current - Output	Current - Quiescent (Iq)	Voltage - Input (Max) [Max]	Mounting Type	Package / Case	Voltage Dropout (Max) [Max]	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Min/Fixed)	Voltage - Output (Min/Fixed) [Min]	Voltage - Output (Min/Fixed) [Max]	Voltage Dropout (Max)	Voltage - Output (Min/Fixed)
ABLIC Inc. S-13D1C2728-A6T2U3	Enable	2	72 dB	116 µA	Positive	HSNT-6-B	150 mA	58 µA	5.5 V	Surface Mount	6-SMD Flat Leads Exposed Pad	0.13 V 0.14 V	1.81 mOhm	85 °C	-40 °C	2.7 V 2.8 V
ABLIC Inc. S-13D1D2J2J-A6T2U3	Enable	2	72 dB	116 µA	Positive	HSNT-6-B	150 mA	58 µA	5.5 V	Surface Mount	6-SMD Flat Leads Exposed Pad	0.13 V	1.81 mOhm	85 °C	-40 °C		2.85 V	2.85 V
ABLIC Inc. S-13D1C2828-A6T2U3	Enable	2	72 dB	116 µA	Positive	HSNT-6-B	150 mA	58 µA	5.5 V	Surface Mount	6-SMD Flat Leads Exposed Pad	0.13 V	1.81 mOhm	85 °C	-40 °C	2.8 V	2.8 V
ABLIC Inc. S-13D1D2J2J-M6T1U3	Enable	2	72 dB	116 µA	Positive	SOT-23-6	150 mA	58 µA	5.5 V	Surface Mount	SOT-23-6	0.13 V	1.81 mOhm	85 °C	-40 °C		2.85 V	2.85 V
ABLIC Inc. S-13D1B3018-M6T1U3	Enable	2	72 dB 75 dB	116 µA	Positive	SOT-23-6	150 mA	58 µA	5.5 V	Surface Mount	SOT-23-6		1.81 mOhm	85 °C	-40 °C	1.8 V 3 V			0.13 V 0.19 V
ABLIC Inc. S-13D1B1218-M6T1U3	Enable	2	75 dB	116 µA	Positive	SOT-23-6	150 mA	58 µA	5.5 V	Surface Mount	SOT-23-6		1.81 mOhm	85 °C	-40 °C	1.2 V 1.8 V			0.19 V 0.34 V
ABLIC Inc. S-13D1B2833-M6T1U3	Enable	2	70 dB 72 dB	116 µA	Positive	SOT-23-6	150 mA	58 µA	5.5 V	Surface Mount	SOT-23-6	0.13 V	1.81 mOhm	85 °C	-40 °C	2.8 V 3.3 V
ABLIC Inc. S-13D1C1528-M6T1U3	Enable	2	72 dB 75 dB	116 µA	Positive	SOT-23-6	150 mA	58 µA	5.5 V	Surface Mount	SOT-23-6	0.13 V 0.21 V	1.81 mOhm	85 °C	-40 °C	1.5 V				2.8 V
ABLIC Inc. S-13D1B2833-A6T2U3	Enable	2	70 dB 72 dB	116 µA	Positive	HSNT-6-B	150 mA	58 µA	5.5 V	Surface Mount	6-SMD Flat Leads Exposed Pad	0.13 V	1.81 mOhm	85 °C	-40 °C	2.8 V 3.3 V
ABLIC Inc. S-13D1C1218-A6T2U3	Enable	2	75 dB	116 µA	Positive	HSNT-6-B	150 mA	58 µA	5.5 V	Surface Mount	6-SMD Flat Leads Exposed Pad		1.81 mOhm	85 °C	-40 °C	1.2 V 1.8 V			0.19 V 0.34 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 0.68
		10000	$ 0.66

Description

General part information

S-13D1 Series

Linear Voltage Regulator IC Positive Fixed 2 Output 150mA HSNT-6-B
