787780-1

Obsolete

TE Connectivity AMP Connectors

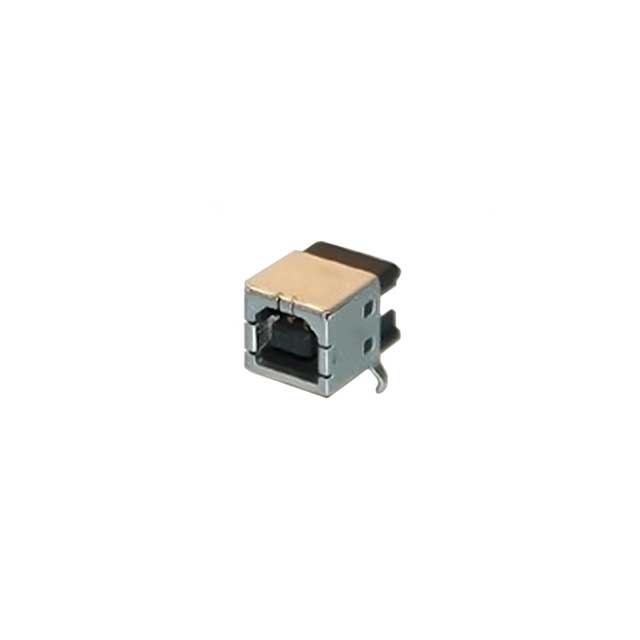

CONN RCPT TYPEB 4POS R/A

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN RCPT TYPEB 4POS R/A

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	787780-1	787780 Series

Connector Type	USB-B	USB-B
Contact Finish	Gold, Gold-Palladium	Gold, Gold-Palladium
Current Rating (Amps)	1 A	1 A
Gender	Receptacle	Receptacle
Insulation Color	Black	Black
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	1500	1500
Mounting Feature	Horizontal	Horizontal
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Contacts [custom]	4	4
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell/Shielding Material	Copper Alloy	Copper Alloy
Shielding	Shielded	Shielded
Termination	Solder	Solder
Voltage - Rated	30 VAC	30 VAC

CONN RCPT TYPEB 4POS R/A

Part	Shell/Shielding Material	Material Flammability Rating	Shielding	Gender	Termination	Voltage - Rated	Contact Finish	Mating Cycles	Number of Ports	Mounting Feature	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Number of Contacts [custom]	Current Rating (Amps)	Insulation Color
TE Connectivity AMP Connectors 787780-3	Copper Alloy	UL94 V-0	Shielded	Receptacle	Solder	30 VAC	Gold, Gold-Palladium	1500	1	Horizontal	Through Hole, Right Angle	85 °C	-55 °C	USB-B	4	1 A	Black
TE Connectivity AMP Connectors 787780-1	Copper Alloy	UL94 V-0	Shielded	Receptacle	Solder	30 VAC	Gold, Gold-Palladium	1500	1	Horizontal	Through Hole, Right Angle	85 °C	-55 °C	USB-B	4	1 A	Black
TE Connectivity AMP Connectors 787780-4	Copper Alloy	UL94 V-0	Shielded	Receptacle	Solder	30 VAC	Gold	1500	1	Horizontal	Through Hole, Right Angle	85 °C	-55 °C	USB-B	4	1 A	Black
