Description
General part information

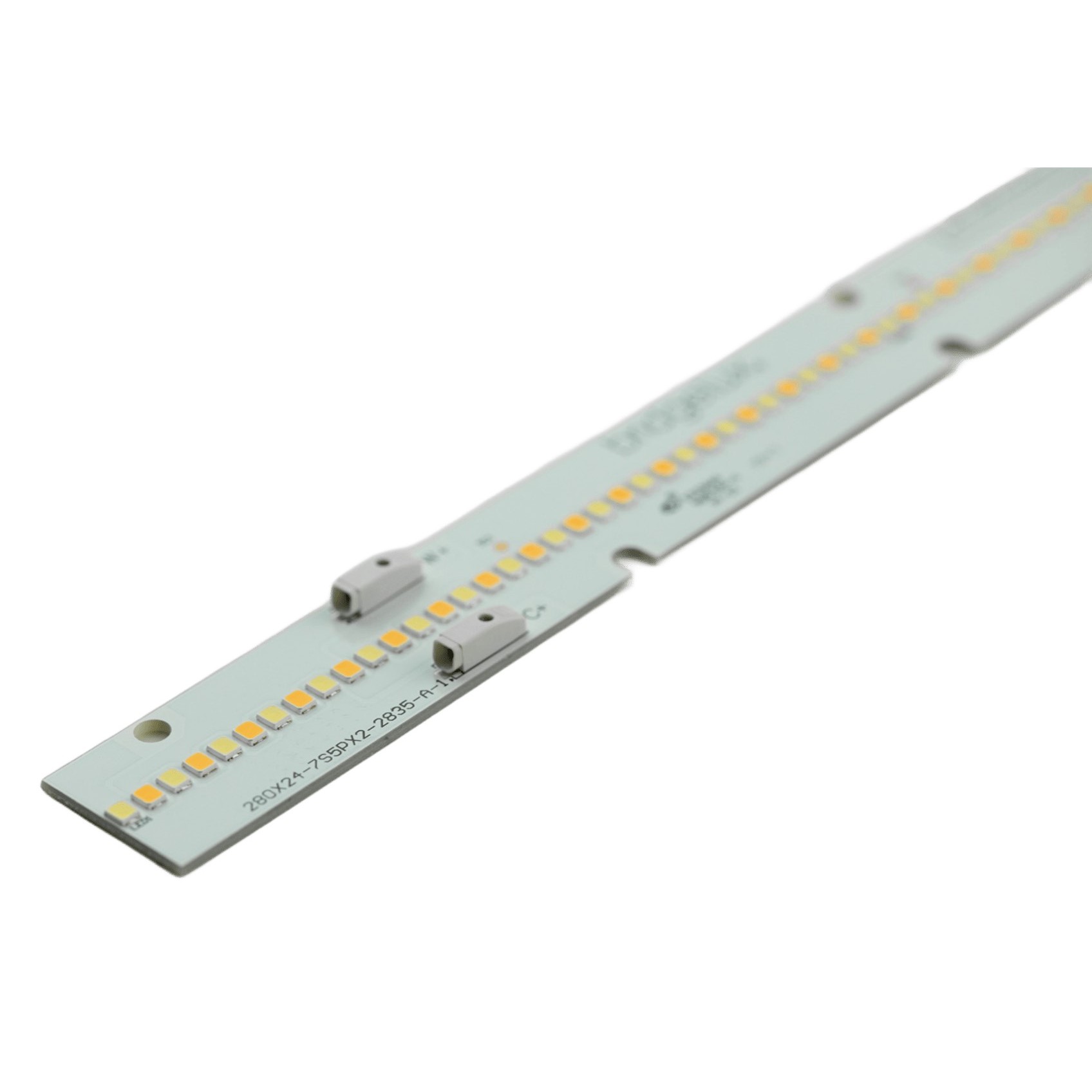

BXEB-TL-L0560Z-2765S2000-B-C3
LED Lighting COBs Engines Modules LED Module Vesta™ White, Warm / White, Cool Linear Light Strip
Technical Specifications
Parameters and characteristics for this part
| Specification | BXEB-TL-L0560Z-2765S2000-B-C3 |
|---|---|
| CCT (K) | 6500 K, 2700 K |
| CCT Options | 6500K 3-Step MacAdam Ellipse, 2700K 3-Step MacAdam Ellipse |
| Color | Warm / White, Cool, White |
| Configuration | Linear Light Strip |
| CRI (Color Rendering Index) | 98 |
| Current - Max | 1.5 A |
| Current - Test | 600 mA |
| Features | With Connector |
| Height | 5.6 mm |
| Lens Type | Flat |
| Lumens/Watt (White, Cool) | 138 lm/W |
| Lumens/Watt (White, Warm) | 122 lm/W |
| Lumens/Watt (White) Color Temperature | Cool, Warm |
| Luminous Flux (Cool White, Typical) | 1680 lm |
| Luminous Flux (Typical) | 1480 lm |
| Luminous Flux (Warm White, Typical) | 1480 lm |
| Luminous Flux (White) | 1680 lm |
| Luminous Flux Colors | Cool White, Warm White, White |
| Size / Dimension Length | 560 mm |
| Size / Dimension Width | 24 mm |
| Temperature - Test | 25 °C |
| Type | LED Module |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 20.3 V |
