7-1123722-5
ActiveTE Connectivity AMP Connectors

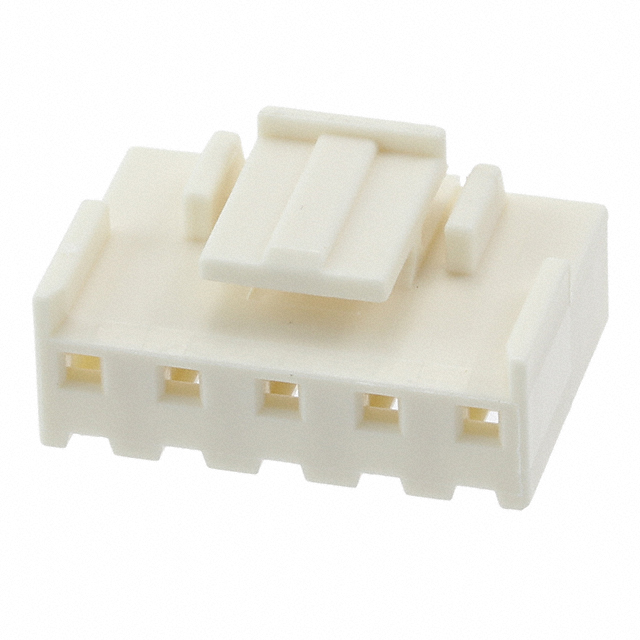

CONN PLUG HSG 5POS 3.96MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7-1123722-5
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG 5POS 3.96MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 7-1123722-5 | 1123722 Series |
|---|---|---|
| Color | Natural | Green, Black, Blue, Natural, Yellow, Red |
| Connector Type | Plug | Plug |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket, Male Pin |
| Fastening Type | Latch Lock | Latch Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Nylon, Polyamide (PA), Glass Filled, Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | - | 2 - 10 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Pitch [x] | 0.156 in | 0.156 in |
| Pitch [x] | 3.96 mm | 3.96 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 6400 | $ 0.16 | |
1123722 Series
CONN PLUG HSG 4POS 3.96MM
| Part | Contact Termination | Fastening Type | Connector Type | Number of Positions | Mounting Type | Color | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Note | Insulation Material | Number of Rows | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 6-1123722-4 | Crimp | Latch Lock | Plug | 4 | Free Hanging (In-Line) | Green | 0.156 in | 3.96 mm | -25 °C | 105 ░C | Contacts Not Included | Glass Filled, Nylon, Polyamide (PA) | 1 | Female Socket |
TE Connectivity AMP Connectors 5-1123722-8 | Crimp | Latch Lock | Plug | 8 | Free Hanging (In-Line) | Black | 0.156 in | 3.96 mm | -25 °C | 105 ░C | Contacts Not Included | Polyamide (PA66), Nylon 6/6 | 1 | Female Socket |
TE Connectivity AMP Connectors 5-1123722-7 | Crimp | Latch Lock | Plug | 7 | Free Hanging (In-Line) | Black | 0.156 in | 3.96 mm | -25 °C | 105 ░C | Contacts Not Included | Polyamide (PA66), Nylon 6/6 | 1 | Female Socket |
TE Connectivity AMP Connectors 6-1123722-2 | Crimp | Latch Lock | Plug | 2 | Free Hanging (In-Line) | Green | 0.156 in | 3.96 mm | -25 °C | 105 ░C | Contacts Not Included | Glass Filled, Nylon, Polyamide (PA) | 1 | Male Pin |
TE Connectivity AMP Connectors 3-1123722-5 | Crimp | Latch Lock | Plug | Free Hanging (In-Line) | Blue | 0.156 in | 3.96 mm | -25 °C | 105 ░C | Contacts Not Included | Polyamide (PA66), Nylon 6/6 | 1 | Female Socket | |
TE Connectivity AMP Connectors 7-1123722-2 | Crimp | Latch Lock | Plug | 2 | Free Hanging (In-Line) | Natural | 0.156 in | 3.96 mm | -25 °C | 105 ░C | Contacts Not Included | Polyamide (PA66), Nylon 6/6 | 1 | Female Socket |
TE Connectivity AMP Connectors 7-1123722-5 | Crimp | Latch Lock | Plug | Free Hanging (In-Line) | Natural | 0.156 in | 3.96 mm | -25 °C | 105 ░C | Contacts Not Included | Polyamide (PA66), Nylon 6/6 | 1 | Female Socket | |
TE Connectivity AMP Connectors 1-1123722-2 | Crimp | Latch Lock | Plug | 2 | Free Hanging (In-Line) | Natural | 0.156 in | 3.96 mm | -25 °C | 105 ░C | Contacts Not Included | Polyamide (PA66), Nylon 6/6 | 1 | Female Socket |
TE Connectivity AMP Connectors 2-1123722-9 | Crimp | Latch Lock | Plug | 9 | Free Hanging (In-Line) | Yellow | 0.156 in | 3.96 mm | -25 °C | 105 ░C | Contacts Not Included | Polyamide (PA66), Nylon 6/6 | 1 | Female Socket |
TE Connectivity AMP Connectors 4-1123722-5 | Crimp | Latch Lock | Plug | Free Hanging (In-Line) | Red | 0.156 in | 3.96 mm | Contacts Not Included | Polyamide (PA66), Nylon 6/6 | 1 | Female Socket |
Description
General part information
1123722 Series
5 Rectangular Connectors - Housings Plug Natural 0.156" (3.96mm)
