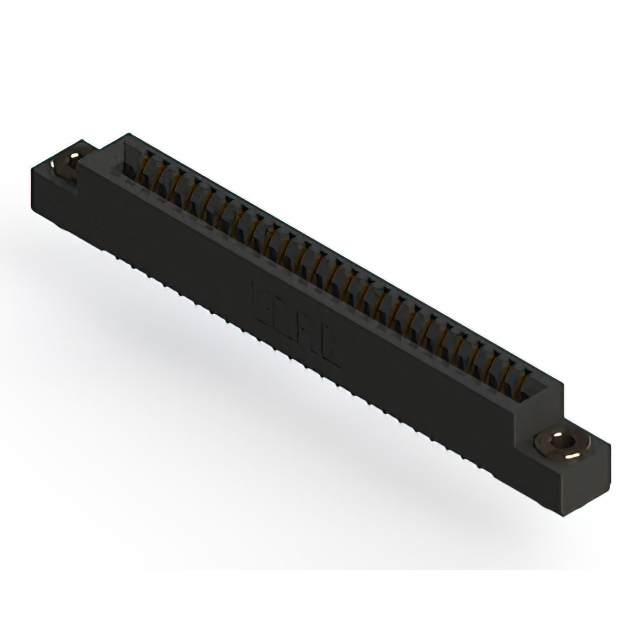

391-025-524-103
ActiveEDAC Inc.
CONN EDGE SINGLE FML 25POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
391-025-524-103
ActiveEDAC Inc.
CONN EDGE SINGLE FML 25POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 391-025-524-103 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions/Bay/Row [custom] | 25 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
391-025 Series
| Part | Material - Insulation | Contact Material | Contact Finish | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Type | Pitch [x] | Pitch [x] | Termination | Number of Rows | Number of Positions/Bay/Row [custom] | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination Rows | Read Out | Contact Finish Thickness | Contact Finish Thickness | Gender | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Gold | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Non Specified - Single Edge | 2.54 mm | 0.1 in | Solder | 1 | 25 | Semi Bellows | -40 °C | 105 ░C | 1 | Single | 10 Áin | 0.25 Ám | Female | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole |
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Gold | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Single Edge | 2.54 mm | 0.1 in | Solder | 1 | 25 | Semi Bellows | -40 °C | 105 ░C | 1 | Single | 10 Áin | 0.25 Ám | Female | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | ||
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Gold | Non Specified - Single Edge | 2.54 mm | 0.1 in | Solder | 1 | 25 | Semi Bellows | -40 °C | 105 ░C | 1 | Single | 10 Áin | 0.25 Ám | Female | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | |||
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Gold | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Non Specified - Single Edge | 2.54 mm | 0.1 in | Solder | 1 | 25 | Semi Bellows | -40 °C | 105 ░C | 1 | Single | 10 Áin | 0.25 Ám | Female | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole |
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Gold | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | 2.54 mm | 0.1 in | Solder | 1 | 25 | Semi Bellows | -40 °C | 105 ░C | 1 | Single | 10 Áin | 0.25 Ám | Female | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | ||
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Gold | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Non Specified - Single Edge | 2.54 mm | 0.1 in | Solder | 1 | 25 | Semi Bellows | -40 °C | 105 ░C | 1 | Single | 10 Áin | 0.25 Ám | Female | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole |
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Gold | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Non Specified - Single Edge | 2.54 mm | 0.1 in | Solder | 1 | 25 | Semi Bellows | -40 °C | 105 ░C | 1 | Single | 10 Áin | 0.25 Ám | Female | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole |
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Gold | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Non Specified - Single Edge | 2.54 mm | 0.1 in | Solder | 1 | 25 | Semi Bellows | -40 °C | 105 ░C | 1 | Single | 10 Áin | 0.25 Ám | Female | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole |
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Gold | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Non Specified - Single Edge | 2.54 mm | 0.1 in | Solder | 1 | 25 | Semi Bellows | -40 °C | 105 ░C | 1 | Single | 10 Áin | 0.25 Ám | Female | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole |
EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Gold | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Single Edge | 2.54 mm | 0.1 in | Solder | 1 | 25 | Semi Bellows | -40 °C | 105 ░C | 1 | Single | 10 Áin | 0.25 Ám | Female | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
391-025 Series
25 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
